Modular UPS Systems (Li-ion Batt)
Quantité : 500units/m Prix : $500-5000
In the IT world, data security needs the modular uninterruptible power supply protection. SCU, a professional UPS system manufacturer, can provide high-quality modular type best industrial ups at a competitive price.
CMS series (30-900KVA)
Advantage of Modular UPS
As an uninterruptible power supply factory, SCU offers our business partners the most flexible and competitive modular UPS solution, with power modules 6kVA, 15kW, 30kW, ups 50kW and 75kW, and UPS systems 12~30kVA, 60kW~900kW, then 4 unites parallel up to 3.6MW, and available with Lithium-ion Batteries Solutions
SCU Uninterruptible Power Supply (UPS) have been protecting clients' business over 20 years from small IT net work to 1MW to 100MW data centers.
scu feature icon
Superior Reliability
Multi-level decentralized control technology;
Flexible redundancy: N+1,N+X, 2N
Physical isolation of cold and hot air ducts;
Support lithium ion ups battery access.
scu feature icon
Excellent Energy Saving
96.5% efficiency at online double Conversion mode;
99% efficiency at IECO mode;
Output PF 1, high load capacity;
Module sleep function ensures the power module always works in the best efficiency state;
scu feature icon
High Availability
Generator Compatible;
Modular, standardized design;
Pay as grow, reduce the total cost of ownership (TCO)
Hot swap, quick repair and expansion;
Small footprint, high power density;
Modular Type Ups
30-120kW UPS system with 15kW power module

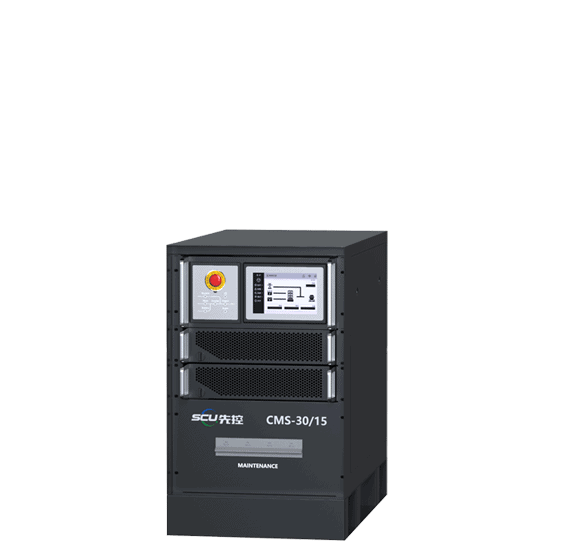

30kva UPS
CMS-30/15
Max. power: 30kW
Power module: 15kW
442*800*662(W*D*H)mm
60kva UPS
CMS-60/15
Max. power: 60kW
Power module: 15kW
442*800*840(W*D*H)mm
120kva Uninterruptible Power Supply UPS
CMS-120/15
Max. power: 120kW
Power module: 15kW
442*800*1195(W*D*H)mm
Modular ups specifications
Model / capacity |
CMS-30/15(30kVA); CMS-60/15(60kVA); CMS-120/15(120 KVA); |
|
Power module |
Model / capacity |
CM15;15kVA/15kW |
Mains input |
Input mode |
3Ph+N+PE |
Rated input voltage |
380V/220V AC、400V/230V AC、415V/240V AC |
|
Input frequency |
50Hz±10%、60Hz±10% |
|
Input PF |
≥ 0.99 |
|
DC input |
Rated input voltage |
±240V DC |
Input voltage range |
±160V~±330V |
|
AC output |
Output PF |
1 |
Output voltage |
380V/220V AC、400V/230V AC、415V/240V AC |
|
Overload |
Operate 10mins with 125% load |
|
Efficiency |
≥96% |
|
Communication function |
Modbus、SNMP、dry contact |
