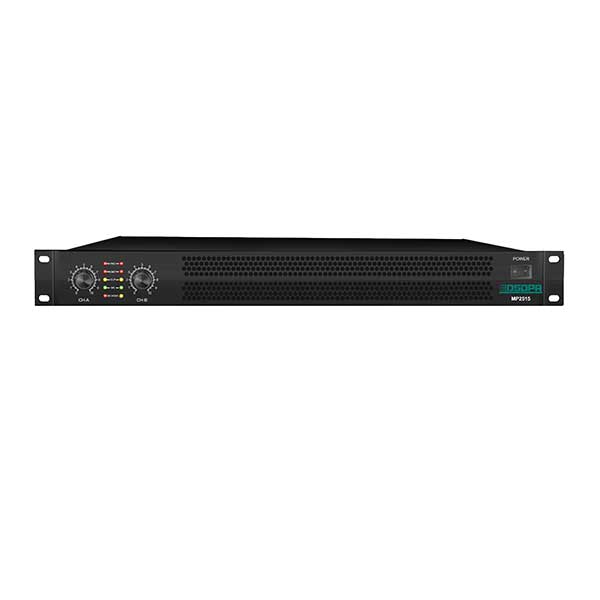

MP2515 Two Channel Digital Amplifier
Features
● Digital amplifier module, high efficiency and stable
● AB channel speaker output, support bridge connection
● Rate power: 2x790W/2x1600W (4Ω)
● 1 U compact design, space saving
● Military quality, industrial PCB for reliable running
Introduction
This product can be callled stereo mixing amplifier.
Specification
|
MODEL |
MP2530 |
||
|
Max. Rated Power |
Stereo 8Ω |
450W+450W |
1000W+1000W |
|
1kHz THD≤1%， 4Ω |
790W+790W |
1600W+1600W |
|
|
Bridge Connection 8Ω |
1580W |
3200W |
|
|
Frequency Response |
20Hz-20kHz(-3dB) |
||
|
Input Sensitivity |
1.0V |
||
|
S/N Ratio |
85dB |
||
|
Input Resistance |
10K Unbalanced，20K Balanced |
||
|
Damping coefficient（20Hz-1kHz） |
280 |
||
|
Conversion rate |
29V/us |
||
|
Crosstalk |
75dB(CHA-CHB) |
||
|
90dB(CHB-CHA) |
|||
|
Protection |
Soft start, DC, short circuit, peak load limit, over temperature, power limit |
||
|
cooling system |
Fan of Variable Speed |
||
|
Voltage |
220V~ 50Hz |
||
|
Net Weight(kg) |
6.2kg |
||
|
Size（W×D×H） |
482×301×44mm |
||
Guangzhou DSPPA Audio Co., Ltd. is a professional audio manufacturer since1988. With more than 30 years' history of designing and manufacturing audio products.
