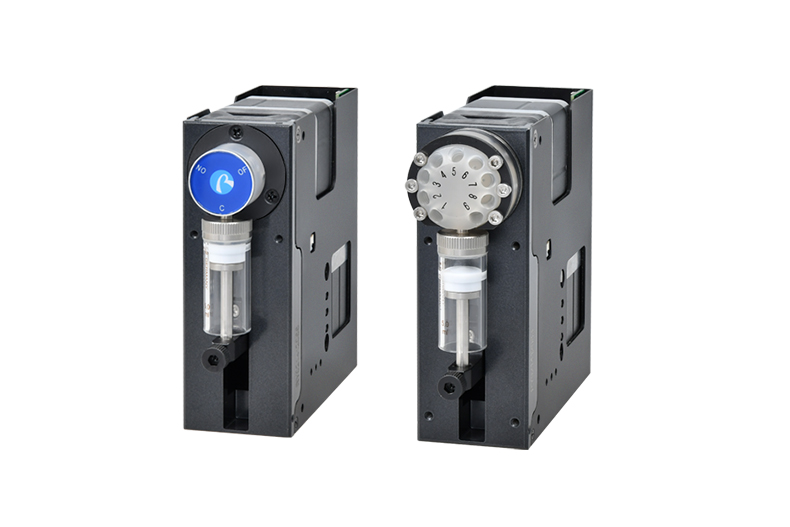

Multi Channel Syringe Pump
Quantité : 500000 Pie Prix : $0.2 - $1500
Multi-Channel Syringe Pump is specially designed for high precision liquid handling with a small footprint applied in limited spaces. The fluid path borosilicate glass, PCTFE, sapphire is workable for strong corrosive chemicals in a wide application range. It is available to select from a variety of syringe volumes and valve configurations.
Specification of multi syringe pump
|
Accuracy |
≤1%@100% stroke |
|
Precision (Repeatability) |
0.3％-0. 5％@100% stroke |
|
Rated stroke (control steps) |
30mm (12000 steps standard, 24000 steps OEM) |
|
Linear Speed |
0.017mm/s - 5mm/s (media: water) |
|
Running time (stroke) |
6s - 1765s (media: water) |
|
Resolution |
0.0025mm (1 step) |
|
Actuator |
Ball screw (Lead 1mm) |
|
Max. piston drive |
≥80N |
|
Sub. piston drive |
≥40N |
|
ILS syringe |
25μL, 50μL,100μL,150μL, 250μL,500μL,1ml,1.25ml, 1.5ml, 2.5ml, 3ml, 5ml |
|
Valve model |
M01 M02 M03 M04 M05 M06 M10 |
|
Valve drive |
≤280ms (switch between neighboring ports) |
|
Wetted material |
Borosilicate glass, PTFE, PCTFE, Sapphire |
|
Max. pressure rating |
0.7Mpa |
|
Valve connection |
1/4-28UNF |
|
Syringe connection |
1/4-28UNF |
|
Communication |
RS232/RS485/CAN |
|
Baud rate |
RS232/RS485: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps |
|
Address ＆ Parameter setting |
Communication |
|
Power supply |
DC24V/3.0A |
|
Operating Temperature |
5℃-55℃ |
|
Operating Humidity |
<80% relative humidity, non-condensing</p> |
|
Dimension (L*W*H) |
137*45*127mm |
|
Net weight |
1.44kg |
