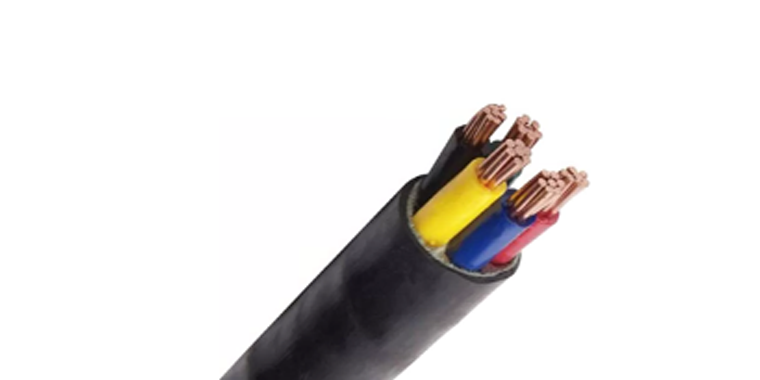

Multi Cores Power Cable (PVC Insulated)
Détails
Chine (Rép. pop) Pro / B2B
Pro / B2B

Multi Cores Power Cable (PVC Insulated)

Quantité : 1000m   Prix : 0.1-100USD

More than 20 years knowledge in cables industry, we, as one of the top wire and cable manufacturers, supply reliable cables worldwidely inculding control cables, building wire, electric wire, power cable, control cable, flexible cable, screen cable, armoured cabel, LSZH cable.

We can supply multicore pvc cable according to the standard of BS, AS/NZS and IEC.

PVC insulated 5 cores or above 5 cores power cables are normally used in power transmission and distribution systems. The cables are referred multicore power cable IEC60502 CU/PVC/PVC 0.6/1KV. The circular conductor is mainly used in these PVC multicore cable.

Multil Cores Power Cable (PVC Insulated Cable) Parameter

Cross-sectional Area (mm2)

No.&diameter of wire (N/mm)

Reference overall diameter (mm)

Reference weight (kg/km)

Conductor Resistance (Ω / km)

20℃ Max

1.5 x 5

7/0.52

14.2

269

12.1

1.5 x 7

7/0.52

15.2

339

12.1

1.5 x 10

7/0.52

18.4

465

12.1

1.5 x 12

7/0.52

18.9

514

12.1

1.5 x 19

7/0.52

21.6

712

12.1

1.5 x 27

7/0.52

25.3

955

12.1

1.5 x 37

7/0.52

28.0

1223

12.1

1.5 x 48

7/0.52

32.5

1583

12.1

2.5 x 5

7/0.67

14.8

359

7.41

2.5 x 7

7/0.67

16.4

435

7.41

2.5 x 10

7/0.67

20.0

600

7.41

2.5 x 12

7/0.67

20.6

651

7.41

2.5 x 19

7/0.67

23.6

948

7.41

2.5 x 27

7/0.67

27.7

1283

7.41

2.5 x 37

7/0.67

31.2

1692

7.41

2.5 x 48

7/0.67

36.0

2169

7.41

4.0 x 5

7/0.85

18.0

519

4.61

4.0 x 7

7/0.85

19.4

637

4.61

4.0 x 10

7/0.85

24.0

890

4.61

4.0 x 12

7/0.85

24.7

1001

4.61

4.0 x 19

7/0.85

28.8

1451

4.61

4.0 x 27

7/0.85

34.9

2044

4.61

4.0 x 37

7/0.85

39.0

2673

4.61

4.0 x 48

7/0.85

45.1

3439

4.61

Description of Multil Cores Power Cable (PVC Insulated)

Rated temperature: 70℃

Rated voltage: 600/1000V

Reference standard: IEC60502-1, GB/T12706

Model: VV

Bare stranded or solid copper conductor

Flame retardant colour-coded PVC insulation

Flame retardant PVC jacket

Application of Multil Cores Power Cable (PVC Insulated)

Place indoor, tunnel, conduit, and not suppose to bear external mechanical force.

For power control circuits, power stations, underground tunnels, instrumentation, alarm systems.
