Multi Hole & Flat Hole Nylon Cable Gland

Product

Multiple Holes and Flat Hole Cable Gland

Category

Plastic Cable Gland

Thread

MG Thread

Connector Type

Installable Straight

Locking System/ Mating Style

Screw

Material

Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR).

Working termperature:

-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade.

Characteristics

Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent.

IP Rating

IPX7

Standard

UL94 V2

Additional Description

With washer and lock nut

Color

Gray, black cable glands are usually in stock . Other colors can be customized on request

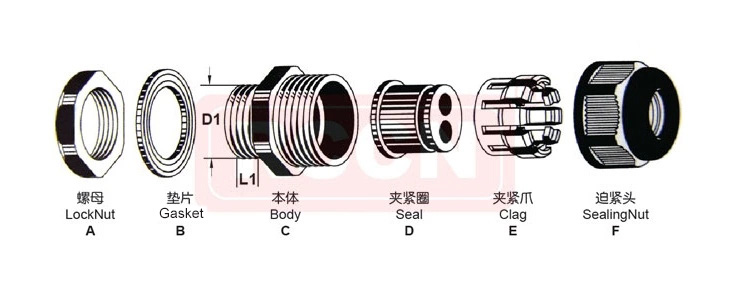

Seal Holes

Item No.

Cable Range (mm)

Thread OD
D1 (mm)

Thread Length L1(mm)

Spanner Size A & E (mm)

MGA12-H2-03

1.2-3

12

8.5

18/19

MGA16-H2-04

1.5-4

16

15

22122

MGA20-H2-06

3-6

20

15

27/27

MGA22-H2-06

3-6

22

10

27/27

MGA25-H2-6.5

3-6.5

25

15

33/33

MGA25-H2-08

4-8

25

15

33/33

MGA32-H2-10

5-10

32

15

41/42

MGA40-H2-13

7-13

40

20

50/52

GA3/4-H3-08

4-8

26.441

15

36/33

GA1 1/4-H3-11

7-11

41.91

16

5752

GA1 1/2-H3-12

7-12

48

22

1

GA2-H3-13

8-13

60

25

75/75

MGA12-H4-2.3

1-2.3

12

8.5

18/19

MGA16-H4-3.2

1-3.2

16

15

22/22

MGA20S-H4-04

1.5-4

20

10

24/24

MGA20-H4-2.5

1-2.5

20

15

27/27

MGA20-H4-3.5

1-3.5

20

15

27/27

MGA20-H4-4.5

2-4.5

20

15

27/27

MGA22-H4-2.5

1-2.5

22

15

27/27

MGA22-H4-3.5

1-3.5

22

15

27/27

MGA22-H4-4.5

2-4.5

22

15

27127

MGA25-H4-05

2-5

25

15

33/33

MGA25-H4-06

3-6

25

15

33/33

MGA25-H4-07

3-7

25

15

33/33

MGA25-H4-08

4-8

25

15

33/33

MGA25-H4-09

5-9

25

15

33/33

MGA2-H4-07

3-7

32

15

41/42

MGA32-H4-09

5-9

32

15

41/42

MGA40-H4-11

7-11

40

20

50/52

MGA40-H4-12

7-12

40

20

50/52

PGA7-H4-2.3

1-2.3

12.5

8.5

17/19

PGA9-H4-2.3

1-2.3

15.2

8.5

22/19

PGA11-H4-3.2

1-3.2

18.6

10

24/22

PGA13.5-H4-04

1.5-4

20.4

10

27/24

PGA16-H4-2.5

1-2.5

22.5

10.8

30/27

PGA16-H4-3.5

1-3.5

22.5

10.8

30/27

PGA16-H4-4.5

2-4.5

22.5

10.8

30/27

PGA21-H4-05

2-5

28.3

12

36/33

PGA21-H4-06

3-6

28.3

12

36/33

PGA21-H4-07

3-7

28.3

12

36/33

PGA21-H4-08

4-8

28.3

12

36/33

PGA21-H4-09

5-9

28.3

12

36/33

PGA29-H4-07

3-7

37

12

46/41

PGA29-H4-09

5-9

37

12

46/41

PGA36-H4-11

7-11

47

14

57/52

PGA36-H4-12

7-12

47

14

57/52

GA1/4-H4-2.3

1-2.3

13.157

8

19/19

GA3/8-H4-3.2

1-3.2

16.662

15

22/22

GA1/2-H4-2.5

1-2.5

20.995

15
