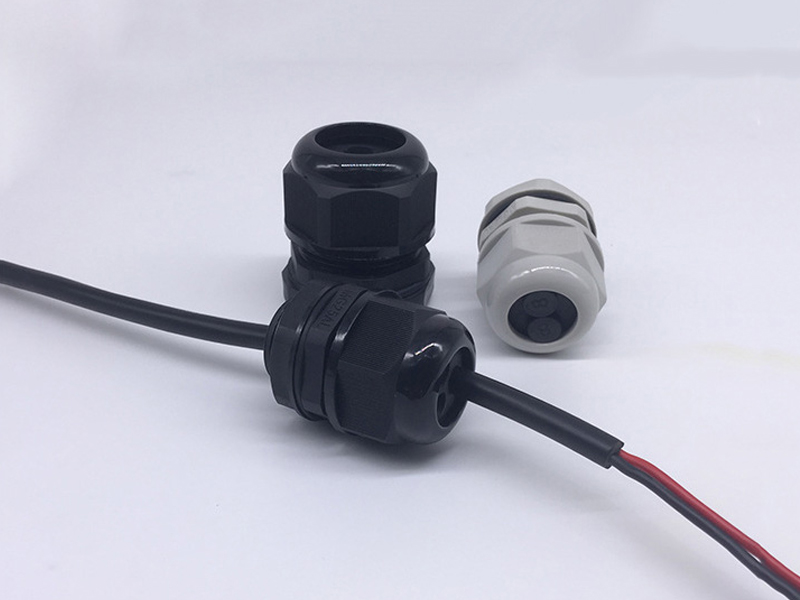

Multi Hole & Flat Hole Nylon Cable Gland
Quantité : 130000 pcs Prix : $0.02~$0.40 per piec
The outstanding advantage of the multi hole cable gland is that the seal can have multiple outlet holes to meet the need of multi-harness cables. The seal has good toughness, can fix the cable, and make the cable gland to be waterproof and dustproof.
Multi hole glands& Flat Hole Nylon Cable Gland Specifications
|
Product |
multi cable gland and Flat Hole Cable Gland |
|
Category |
Plastic Cable Gland |
|
Thread |
MG Thread |
|
Connector Type |
Installable Straight |
|
Locking System/ Mating Style |
Screw |
|
Material |
Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR). |
|
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
|
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent. |
|
IP Rating |
IPX7 |
|
Standard |
UL94 V2 |
|
Additional Description |
With washer and lock nut |
|
Color |
Gray, black cable glands are usually in stock . Other colors can be customized on request |
