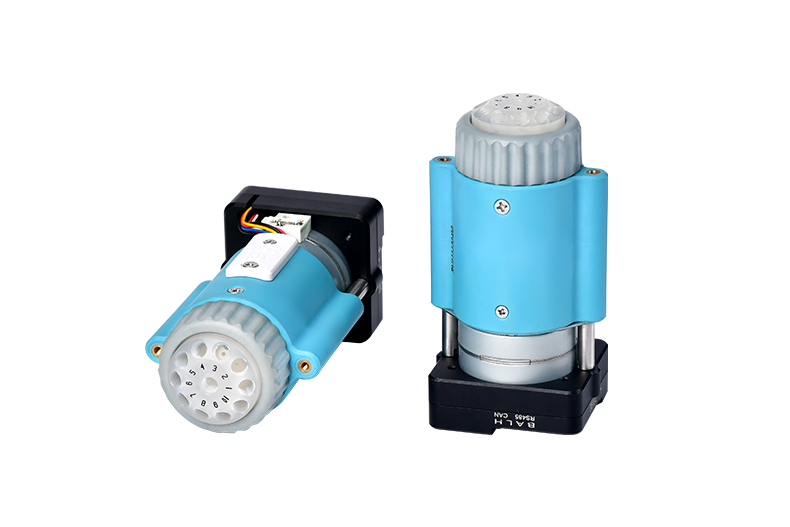

Multiport Selector Valve
Quantité : 500000 Pie Prix : $0.2 - $1500
Smart SV-04 multiport flow selector valve was equipped RUNZE patented sapphire valve spools with high hardness so as to anti-wear resistance to extend the service life, it is also biocompatible, corrosion resisting and temperature resisting, small footprint and maintenance-free systems make it widely accepted in a small compact instrument.
Flow Configuration of Multiport Selector Valve
Multiport Selector Valve
Wetted material - PCTFE valve head and sapphire valve spool to create a fluid path of non-metal, anti-corrosion, anti-high temperature and wear resistance
Reset position - SV06 valve reset by CCW (non-changeable), rotor stay between port 1 and maximum port, public port disconnected with any port when valve at reset position
Specification of Multiport Selector Valve
|
Orifice |
1.2mm |
|
Wetted material |
PCTFE, Sapphire |
|
Port configuration |
6/8/10 port |
|
Dead volume |
5.4μL |
|
Air pressure |
0-0.5Mpa |
|
Water pressure |
0-0.6Mpa |
|
Origin detection |
Auto-reset to reset position when powered on (optional and settable) |
|
Liquid temperature |
0-150℃ |
|
Connection |
1/4-28UNF |
|
Replaceable parts |
Stator replaceable, sealed rotor irreplaceable |
|
Transposition |
Random start to any specific port |
|
Driver |
Non-optional |
|
Switch speed |
≤4s/r |
|
Max. torque |
4N/m |
|
Communication |
RS232, RS485, CAN |
|
Baud rate |
RS232/RS485: 9600bps, 9200dps, 38400dps, 57600dps, 115200dps CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps |
|
Address & Parameter setup |
Communication interface |
|
Power supply |
DC24V/1.0A |
|
Max power |
24W |
|
Operating temperature |
0℃ to 50℃ |
|
Operating humidity |
<80% relative humidity, non-condensing</p> |
|
Dimension (L*W*H) |
63.7*50.4*115.1mm |
|
Net weight |
0.437KG |
Driver Port of Multiport Selector Valve
|
Port |
Description |
|
+ |
DC24V positive |
|
- |
DC24V negative |
|
TX |
RS232 data input |
|
RX |
RS232 data output |
|
GND |
GND |
|
H |
CANH |
|
L |
CANL |
|
A |
RS485 A |
|
B |
RS485 B |
Personne à contacter : Zhu Julie, 86 025 5119 7362
