N42SH ARC Neodymium Magnet OD1.5 inch xID1.25 inch x0.75 inch Lx90 Degree ID N Pole

N42SH ARC Neodymium Magnet OD1.5 inch xID1.25 inch x0.75 inch Lx90 Degree ID N Pole

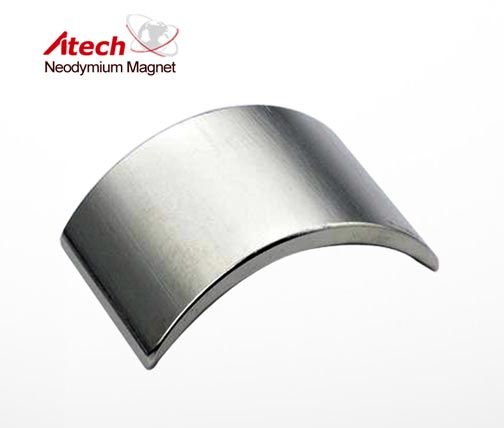

This powerful neodymium arc magnet measures OD1.5" xID1.25" x0.75" Lx90 Degree. The 4 pieces of this arc magnets can form a circle with OD=1.5" , ID=1.25" and height =0.75" with working temperature of 302 degree Fahrenheit or 150 degree celsius. It is made from an alloy of neodymium, iron and boron, plated with triple layers of nickel-copper-nickel for effective corrosion protection.

The applications of this neodymium arc magnet include automive & transportation, wind power energy, and other kind of high efficent motors and generators

Why Choose Us

1. ISO9001: 2015 Quality Management System certified by TUV with continuous improvements.

2. 25 years experience in neodymium magnet R & D and Manufacturing with over 1000 customized designs.

3. R & D team with multiple patents led by national "scientific and technological progress" award winner.

4. Ultimate magnetic solution provided with easy communication and fast response.

Please Note:

1. All neodymium magnets are very strong and brittle.

2. Must be handled with extreme care to avoid personal injury.

3. Eye protection should be worn when handling magnets.

4. Keep the magnets away from pacemakers.

5. The neodymium magnet should NOT be for children.

SKU Code: ATECHAR001

Dimensions: OD1.5" xID1.25" x0.75" Lx90 Degree

Tolerances: ±0.05mm

Material: NdFeB, Grade N42SH

Plating/Coating: Ni-Cu-Ni

Magnetization Direction: Diamatrically

Weight: 0.480 g

Br Max/Gauss rating: 13200 GS

Max Operating Temp: 80ºC (176ºF )

Contact us to buy n42sh magnet and know more.
