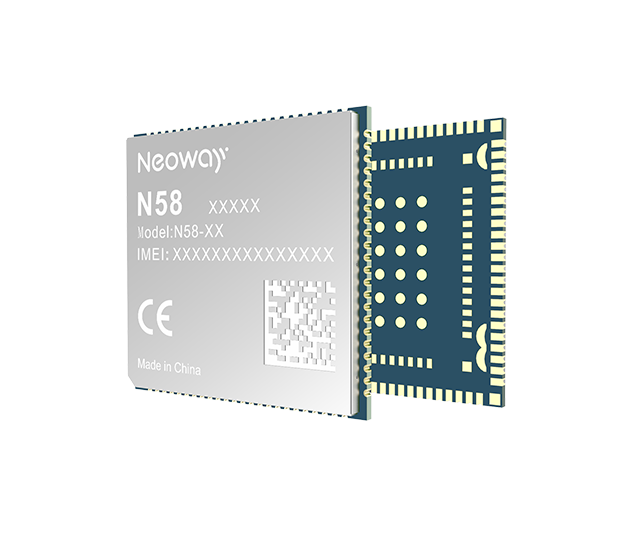

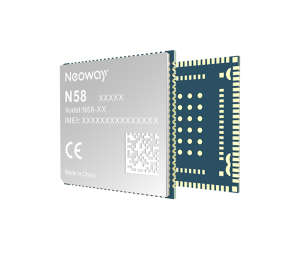

N58
Neoway N58 is an LTE Cat 1 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel.13 LTE（Cat.1 bis） technology, LTE Cat.1 module N58 provides 10 Mbps downlink and 5 Mbps uplink data rates. Neoway N58 has excellent RF performance, ultra-low power consumption, and an ultra-wide operating temperature range. Its USB serial drivers are applicable to Windows 7/8/8.1/10, Linux, and Android OS. With integration of network protocols, industry-standard interfaces, and abundant functions, Neoway N58 is an optimal option for energy metering, telematics, sharing/payment products, device management, and other industry applications.
Product Features
BT (BLE 4.2)
Pin2Pin N720
Extensible memory
GNSS
-40℃ to 85℃
Specifications
|
Supply voltage |
3.3 V to 4.3 V, Typ.: 3.8 V |
|
Dimensions |
30.0 mm x 28.0 mm x 2.8 mm |
|
Package |
192-pin LCC+LGA |
|
Storage |
ROM+RAM: 64 Mb + 128 Mb |
|
Interface |
PCM / I2S |
|
ADC x 1 |
|
|
I2C x 1 |
|
|
SPI x 1 |
|
|
UART x 2 |
|
|
USB 2.0 |
|
|
PWRKEY_N |
|
|
RESET_N |
|
|
PSM_WAKEUP (Into sleep mode) |
|
|
NET_LIGHT |
|
|
USIM (1.8 V / 3.0 V) x 2 (Dual card single standby) |
|
|
SDIO |
|
|
1PPS (optional) |
|
|
GNSS (optional) |
GPS/BDS/GLONASS |
|
Frequency bands |
CA: |
|
LTE Cat.1: B1/B3/B5/B8/B34/B39/B40/B41 |
|
|
GSM|GPRS: 900/1800 MHz |
|
|
|
|
|
EU/EMEA/SEA: |
|
|
LTE FDD: B1/B3/B5/B7/B8/B20/B28 |
|
|
LTE TDD: B38/B40/B41 |
|
|
GSM|GPRS: 900/1800 MHz |
|
|
Protocol |
TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ |
|
ESD |
VBAT: ±8 kV / ±15 kV |
|
GND: ±8 kV / ±15 kV |
|
|
ANT: ±8 kV / ±15 kV |
|
|
Other: ±4 kV / ±8 kV |
|
|
Region |
China(mainland)/EMEA/Australia |
|
Certifications |
CCC, SRRC, CTA, CE, RoHS, REACH, POPs, NBTC, GCF*, Anatel* |
