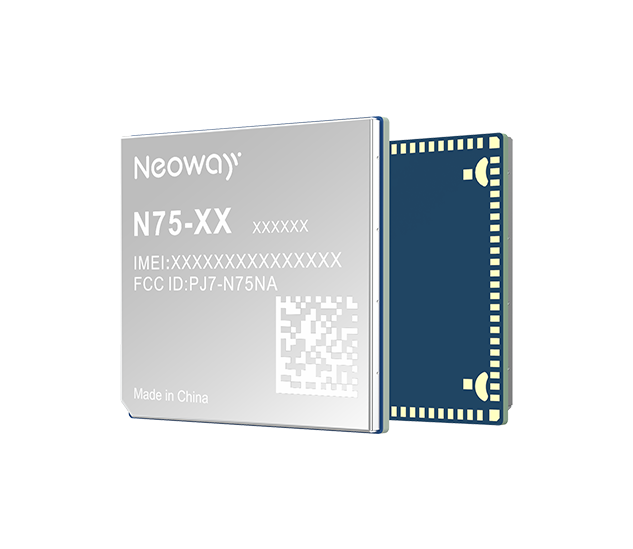

N75
N75 is an LTE Cat.4 4g module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel.11 LTE technology, it provides 150 Mbps downlink and 50 Mbps uplink data rates. N75 supports location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo, and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more reliable positioning functions. With integration of network protocols, industry-standard interfaces, and abundant functions, N75 is an optimal option for energy metering, Internet of Vehicles, industrial router, video surveillance, environmental monitoring, and other industry applications.
Product Features
OpenLinux
All NA bands
Pin2Pin N720
GNSS
-40℃ to 85℃
Specifications
|
Supply voltage |
3.3 V to 4.3 V, TYP.: 3.8 V |
|
Dimensions |
30.0 mm x 28.0 mm x 2.8 mm |
|
Package |
100-pin LGA |
|
Storage |
Optional (ROM: 2 Gb / 1 Gb; RAM: 1 Gb) |
|
Interface |
PCM/I2S |
|
ADC x 2 |
|
|
I2C x 1 (Open) |
|
|
SPI x 1 (Open) |
|
|
UART x 2 |
|
|
USB 2.0 |
|
|
PWRKEY_N |
|
|
RESET_N |
|
|
DTR (sleep mode control) |
|
|
NET_LIGHT |
|
|
USIM (1.8 V / 3.0 V) |
|
|
SGMII (Open) |
|
|
SDIO 3.0 (Open) |
|
|
SD Card (Open) |
|
|
GNSS |
GPS/BDS/GLONASS |
|
Frequency bands |
NA: |
|
LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26/B66/B71 |
|
|
UMTS: B2/B4/B5 |
|
|
GPRS|EDGE: B2/B5 |
|
|
|
|
|
EA (EMEA/SEA): |
|
|
LTE FDD: B1/B3/B5/B7/B8/B20/B28 |
|
|
LTE TDD: B38/B40/B41 |
|
|
UMTS: B1/B5/B8 |
|
|
GSM|GPRS: 900/1800 MHz |
|
|
|
|
|
LA: |
|
|
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B10/B28/B66 |
|
|
LTE TDD: B38/B40/B41 |
|
|
UMTS: B1/B2/B4/B5/B8 |
|
|
GSM/GPRS: 850/900/1800/1900 MHz |
|
|
Protocol |
TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ |
|
ESD |
VBAT: ±8 kV / ±15 kV |
|
GND: ±8 kV / ±15 kV |
|
|
ANT: ±8 kV / ±15 kV |
|
|
Other: ±4 kV / ±8 kV |
|
|
Region |
North America |
