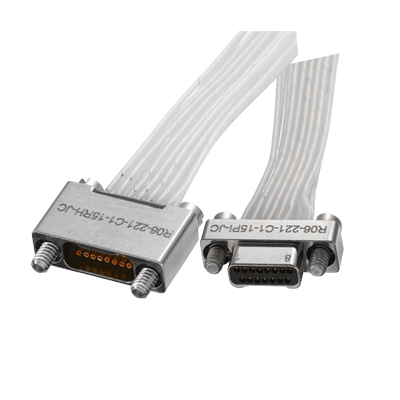

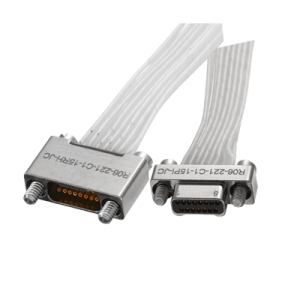

Nano Crimp Connector

Description：

Sunkye Nano crimp connector series, contact number: 9, 15, 21, 25, 31, 37, 51, 65, and 69. It is used for all kinds for electric circuit system interconnection which have high density, micro, light, highly reliable requirement. It can meet light and miniaturize demand.

Characteristics of Nano Connector

Crimp tail termination type with several selectable mounting styles.

Working temperature environment: -55℃~+125℃.

Machine life: 200 times.

LCP * Liquid Crystal Polymer.

Potting * Epoxy compound used as an encapsulate.

Shell *Connector metal body plated nickel or cadmium.

Jackscrew *High or low profile, hexagonal socket or slotted head.

Jackpot* Mates with jackscrew.

Cable * AFR250 (PTFE) MIL-DTL-681

Wire length * ≤6 meters (Recommend)

Contacts *Twist pin contacts, high density interconnection, Becu, gold over nickel plating

Thickness of Gold plating * ≥1.27micron

TWIST PIN * Male contact, fitted to plug connector.

Socket * Female contact, fitted to socket connector (also known as socket).

Insulator* 20% GFPPS (20% glass filled polypropylene sulfide)

Insert * Moulded insulation housing, separating each connection.

Interfacial Seal * Fitted to socket connector only

As a specialist in advanced military connectors china, Sunkye has extensive experience in micro-miniature and nano miniature solutions based on the highly reliable Twist Pin contact technology. If you want to know more details or want a quotation , just feel free to contact us!
