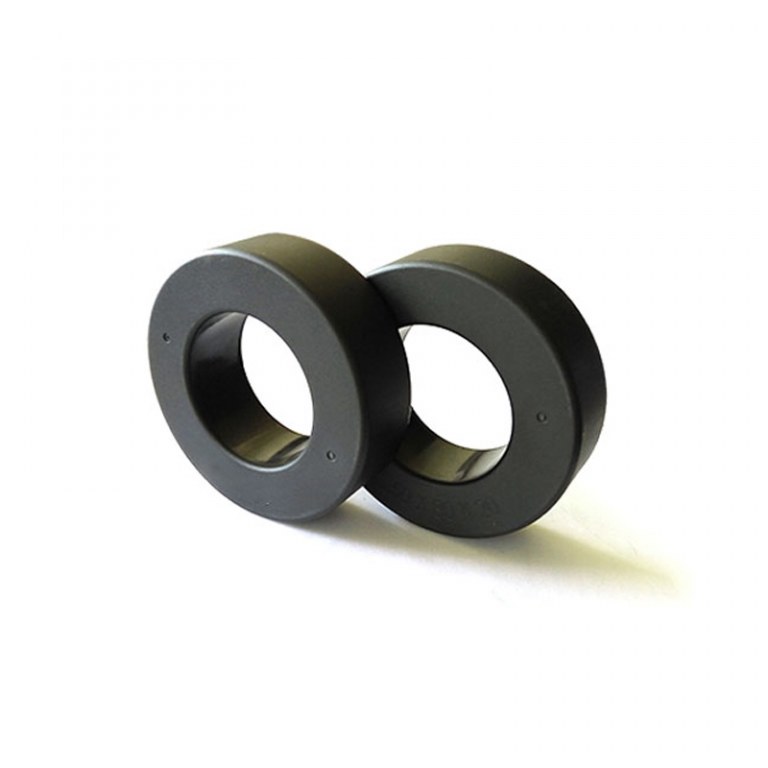

Nanocrystalline Cores for Common Mode Chokes

Quantité : Negotiable   Prix : Negotiable

  1. Features
  1. High initial permeability and high AL value
  2. High effective insertion loss and excellent noise suppression
  3. Wide frequency range, large adjustable range for permeability

µ0from 20000160000

  1. Low core losssmall choke size for volume and weight with epoxy coating
  1. Application
  1. Switched-mode Power supplies
  2. EMI common mode fliter
  1. Properties:

Nanocrystalline cores

Ferrite cores

Saturation magnetic induction BsT

≥1.20T

0.4

Curie temperature

≥560

170

Saturation magnetism flexible coefficient×10-6

<2</span>

4

Operating Temperature Range

-55—130℃

<80℃</span>

Initial permeability µ0

20000160000

2000

Coercivity A/m

<1.6</span>

30

High frequency core lose P(20KHZ.0.2T)

3.4

7.5
