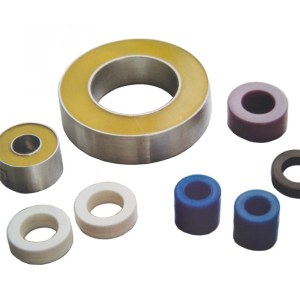

Nanocrystalline Cores for Power Transformer

Quantité : Negotiable   Prix : Negotiable

  1. Features

High permeability

High saturation Induction ,Low core loss

The density and lamination coefficient of nano-crystalline is lower than that of

Permalloy, under the condition of the same size and similar performance of the

two. It is 1/4 lighter in weight, and 1/3 lower in the manufacturing cost.

Good temperature stability: work for a long time at temperature of -55 ~ 130 ℃

The linear range of nano-crystalline alloy is wider than that of Permalloy .

2. Properties

Comparison of different materials

Property

Nanocrystalline cores

permalloy cores

Si-steel cores

Saturate induction (Bs)

1.25T

0.75T

2.03T

Initial permeability(µ0)

812×104

58×104

103

Maximum permeabilityµm

60×104

60×104

4×104

Curie temperature

570

400

740

Densityg/cm3

7.25

8.75

7.65

Stacking factor

0.7

0.9

0.95

Thickness (mm)

0.03

0.15

Localisation : Jiugong Town, Daxing District, 102600 Jiugong Town,
Personne à contacter : Rose Li, +86(10) 53027561
