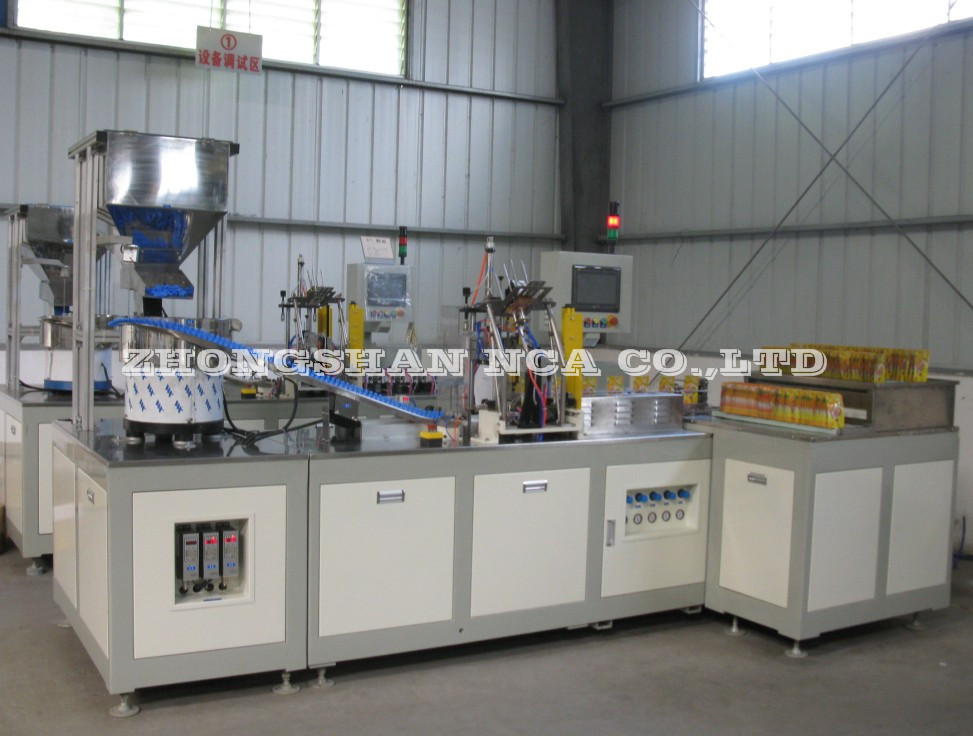

NCA1603-35 Spout bag sealing machine
Quantité : 1 set
1.Model: NCA1603-35
2.Usage: The machine is used to weld a plastic nozzle to a flexible pouch / bag.It is suitable for packing drinks, jelly, soy sauce, flavorings and cosmet ics(milk, face mask) etc.
3. Spout and pouch are pre-made.
4.Main Features:
** Spout feed and bag feed automatically.
** Multi-hot sealing and cold shaping.
** Panasonic servo motor drive.
** PID temperature control.
** Man-machine interface operation.
** Screen displays working conditions .
** Safety cover for protective operation.
** Trouble alarm and display.
** Finished products be collected into plastic groove automatically.
5）Main technical specification:
|
Capacity |
35-40pcs/min |
|
Pouch size |
L: 100-190mm W: 80-120mm |
|
Compressed air |
0.5Mpa 180NL/min |
|
Cooling water |
6L/min |
|
Pouch style |
Self-standing bag, penguin style bag, 3 sides bag,etc. |
|
Power |
AC380V 50HZ 3P 4.5KW |
|
Dimension |
3870x2300x1960mm |
|
Weight |
1800KG |
Personne à contacter : KK Hung, 86 760 86137388 815
