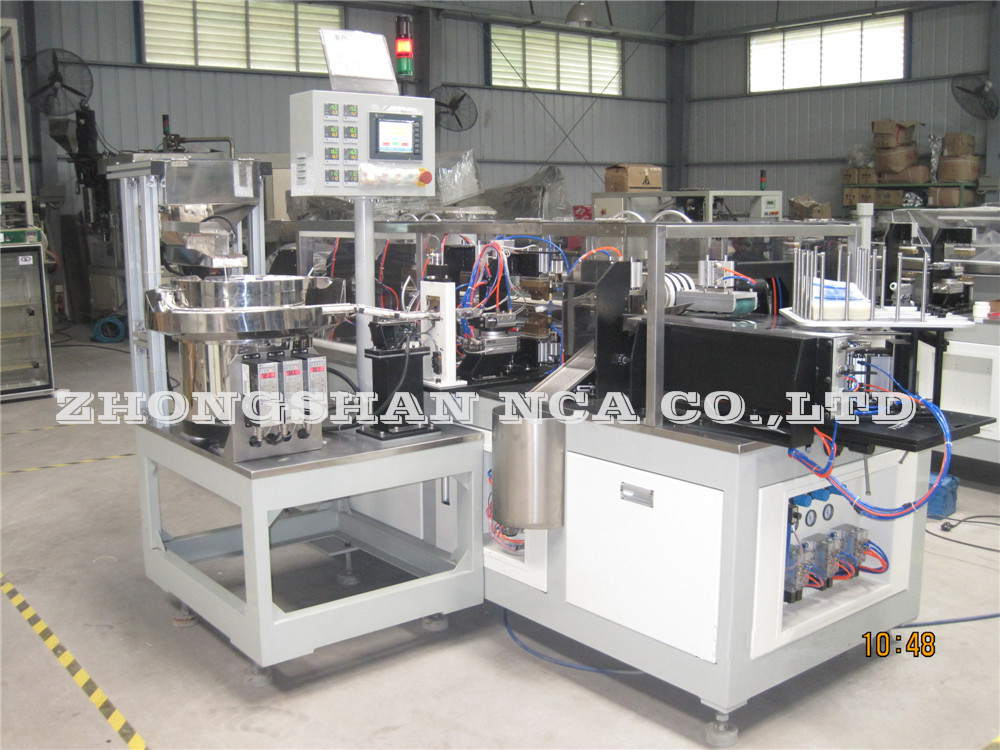

NCA1620-30 Corner Spout Pouch Sealing Machine
Quantité : 1 set
1.Model: NCA1620-30
2. Usage: The machine is used to weld a corner nozzle to plastic pouch. It ls suitable for the plastic bag of liquids, pastes, powders , suce as drinks, sauce, cream , cosmetics and so on.
4) Main technique features:
** Cut an angle of the pouch, then weld a plastic nozzle automatically.
** Angle of the nozzle-welding can be adjusted from 17°to 45°.
** Nozzle feed and Pouch feed automatically.
** One person operation, save labor force.
** Max size of pouch can be 2200ml, special order is needed for the over size.
** Touch-screen clear display,PLC control,easy operation.
** Multi-hot sealing,cold sealing,ensure the sealing strength.
** Trouble alarm display, and machine stop automatically.
5) Main Technical Specification:
|
Capacity |
30-35pcs/min |
|
Pouch size |
L: 120-320mm W: 90-250mm Max: 300x250mm 320x200mm 260x260mm |
|
Compressed air |
0.5Mpa 250NL/min |
|
Cooling water |
6L/min |
|
Cutting angle |
17°to 45° |
|
Power |
AC380V 50HZ 3P 4.0KW |
|
Dimension |
3500x1800x1950mm |
|
Weight |
1800KG |
