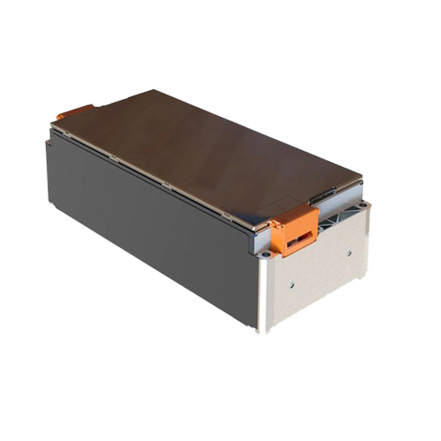

NCM102Ah 1P6S VDA Module
Quantité : 6Gwh for c Prix : 0.48~0.6USD/Ah
355 VDA frame welding lithium ion battery module.
High-quality standard of production and performance meeting supply requirements of passenger vehicles.
Uninterrupted supply is guaranteed by stable mass production.
Continuously improved energy density through nickle proportion promoting and light weighting technology.
Suitable for passenger vehicles and commercial vehicles etcetera.
Technical Data of NCM102Ah 1P6S VDA Battery Module
|
No. |
Items |
Specification |
Note |
|
1 |
Nominal voltage(V) |
22.2 |
|
|
2 |
min |
16.8 |
|
|
3 |
max |
25.8 |
|
|
4 |
Nominal capacity(Ah) |
102 |
25±2℃,1/3C |
|
5 |
Nominal energy（KWh ） |
2.2644 |
25±2℃,1/3C |
|
6 |
Available energy（KWh ） |
≥2.219 |
|
|
7 |
Group mode |
1P6S |
|
|
8 |
End-of-life residual capacity (Ah) |
81.6 |
Residual capacity≥80% initial capacity，@25℃ |
|
9 |
Module weight（kg） |
11.2±0.3 |
|
|
10 |
Maximum continuous charge current（A） |
120 |
|
|
11 |
Maximum short pulse charge current（≤10s） |
204 |
|
|
12 |
Maximum continuous discharge current（A） |
150 |
|
|
13 |
Maximum short pulse discharge current（≤10s）（A） |
306 |
|
|
14 |
SOC operating range（%） |
10~90 |
|
|
15 |
Insulation requirements(MΩ) |
≥20 |
500V DC, High voltage output to the battery module |
|
shell, at the normal temperature and humidity |
|||
|
16 |
Module cooling method |
Natural cooling |
|
|
17 |
Module heating method |
No |
|
|
18 |
Shipping capacity (SOC) |
30%~70% |
SOC is consistency in the same batch |
|
19 |
Shipping consistency（mv） |
＜20 |
The voltage difference between the cell of module＜20mV |
|
Coulomb efficiency |
≥95% |
|
|
|
Module self-discharge |
≤3% |
25±2℃,50%SOC |
|
|
20 |
Dimension L （mm） |
355 |
|
|
21 |
Dimension W（mm） |
151.5 |
|
|
22 |
Dimension H（mm） |
108.5 |
|
NCM102Ah 1P6S VDA Module Advantages
The NCM102Ah 1P6S VDA Module offers several advantages for various lithium battery solutions:
High Energy Density: The VDA module utilizes NCM (Nickel-Cobalt-Manganese) chemistry, providing a high energy density. This means it can store a significant amount of energy in a compact form, making it ideal for applications where space is limited.
Enhanced Performance: With a capacity of 102Ah, the VDA module offers ample power for demanding applications. Whether it's the lithium-ion battery for electric vehicles, lithium-ion battery energy storage systems, or other high-power devices, the NCM102Ah 1P6S VDA Module delivers reliable and efficient performance.
Long Cycle Life: The VDA 355 module is designed to have a long cycle life, ensuring its durability and reliability over extended periods of use. This makes it suitable for applications that require frequent charge and discharge cycles, such as electric vehicles or renewable energy systems.
Safety Features: The VDA battery module incorporates advanced safety features to protect against overcharging, over-discharging, and short circuits. These safety mechanisms help prevent potential hazards and ensure the safe operation of the module.
Easy Integration: The NCM102Ah 1P6S VDA Module is designed for easy integration into various systems. Its compact size and modular nature allow for flexible installation and scalability, making it convenient for lithium-ion battery factories and system integrators.
Environmental Friendliness: As an NCM module, it offers a more environmentally friendly alternative compared to traditional lead-acid batteries. With reduced emissions and improved energy efficiency, it contributes to a greener and more sustainable future.
Experience the advantages of the NCM102Ah 1P6S VDA Module and unlock the potential for efficient energy storage in your applications.
VDA 355 Module Key Features
Lithium Battery Technology: The VDA 355 module utilizes lithium battery technology, known for its high energy density, long cycle life, and fast charging capabilities.
High-Quality Production: The VDA 355 module is manufactured to meet a high standard of production, ensuring reliable performance and adherence to industry quality requirements.
Stable Mass Production: The VDA 355 module benefits from stable mass production, ensuring a consistent and uninterrupted supply to meet the demands of vehicle manufacturers.
Improved Energy Density: The VDA 355 module incorporates advancements in energy density, achieved through techniques such as nickel proportion promotion and lightweight technology. This results in increased energy storage capacity and potentially improved vehicle range.
Suitable for Passenger and Commercial Vehicles: The VDA 355 module is designed to be compatible with a range of vehicle types, including both passenger vehicles and commercial vehicles. This versatility allows for its application in lithium-ion batteries for electric vehicles.
Performance and Reliability: The VDA 355 module is engineered to deliver reliable performance, providing the necessary power and longevity required for vehicle operation.
Safety Features: The VDA 355 module may include built-in safety features such as overcurrent protection, overvoltage protection, and temperature monitoring to ensure safe operation and prevent damage to the battery.
Integration with Vehicle Systems: The VDA 355 module is designed for seamless integration with vehicle electrical systems, allowing for efficient and optimized performance within the vehicle's overall power management system.
NCM102Ah 1P6S VDA Module Dimensions
VDA Battery Module Standard
