NdFeB Magnetic Recess Former
Introduction of NdFeB Magnetic Recess Former

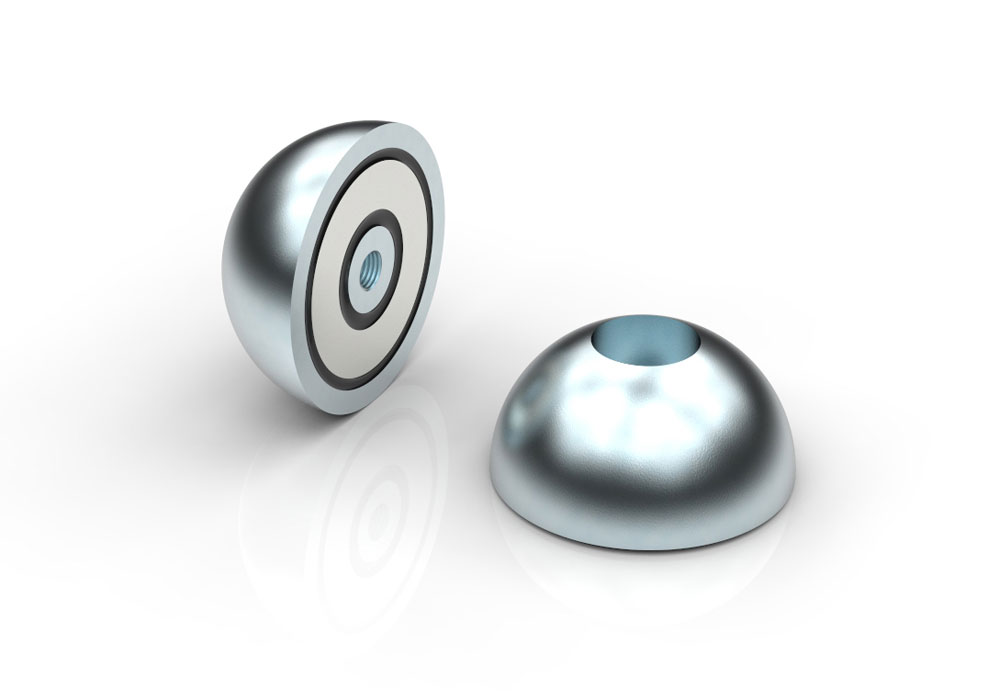

These hemispherical magnetic recess formers are co-used with anchors. We have D60mm(50KGS) for 1.3t anchor, D74mm(100KGS) for 2.5t, D94mm(120KGS) for 5.0t and D118mm(190KGS) for 10t anchor.
Two versions (six small disc magnets and one big ring magnet) are available.
The standard surface treatment is Zinc plating.
ltem No |
D |
H |
h |
d |
M |
Force |
Weight |
||
mm |
mm |
mm |
mm |
|
Lbs |
Kg |
N |
g |
|
RDNB60F |
60 |
27.5 |
17.5 |
20.5 |
M8 |
110 |
50 |
490 |
381.5 |
RDNB74F |
74 |
33 |
20 |
30 |
M10 |
220 |
100 |
980 |
387.5 |
RDNB94F |
94 |
42 |
27 |
38 |
M12 |
264 |
120 |
1176 |
1400 |
RDNB118F |
118 |
53 |
40 |
48.5 |
M12 |
418 |
190 |
1862 |
2625 |
As a magnet manufacturing company, we can offer sorts of china magnetic assembly for sale, if you have needs, please contact us.
Personne à contacter : Steve Wang, +86 0512 50357618
