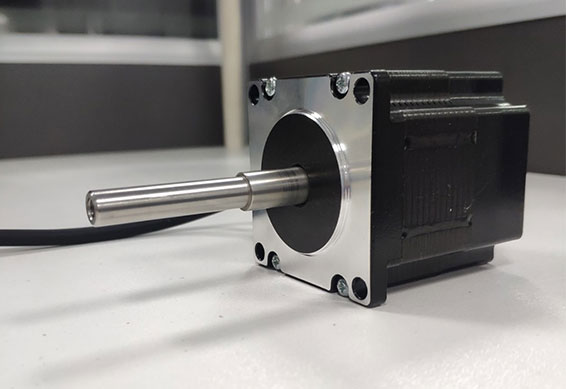

NEMA 23 BRUSHLESS DC MOTOR (SQUARE)
NEMA 23 Brushless DC Motor (SQUARE)
NEMA 23 (square) shares similar mounting dimensions as NEMA 23 (round) but has much higher torque and power density. Due to the stronger magnet materials adopted, it improves better dynamic performance in the same space.
NEMA 23 BRUSHLESS DC MOTOR (SQUARE) CHARACTERISTIC PARAMETER
|
RATED VOLTAGE |
30 VDC |
|
RATED OUTPUT POWER |
30 W |
|
POLES NUMBER |
8 |
|
PHASE NUMBER |
3 |
|
RATED ROTATIONAL SPEED |
3500 RPM |
|
OPEN LOOP IDLE SPEED |
4000 RPM±10% |
|
RATED TORQUE |
0.081N.m(11.4oz. n) |
|
RATED CURRENT |
1.4 A |
|
VOLTAGE COEFFICIENT |
0.073 V.s/rad |
|
PH RESISTANCE |
0.93 ohm±0.15 AT 20°C |
|
PH INDUCTANCE |
0.54 mH±20% AT 1kHz,1Vrms |
|
DIELECTRIC STRENGTH |
500V A.C/MINUTE |
|
INSULATION CLASS |
CLASS E(120℃) |
|
ROTOR INERTIA |
170g.cm 2 (0.93oz.in 2) |
|
WEIGHT |
APPROX. 900g(31.9oz) |
|
ALLOWABLE THRUST LOAD |
15N |
|
ALLOWABLE RADIAL LOAD |
75N(ON THE SHAFT END) |
|
OPERATE AMBIENT TEMP. |
-20°C----+50°C |
|
OPERATION AMBIENT HUM. |
15%----90% |
|
LIFE |
5000 HOURS |
If you want to know more stepper motor working principle, please visit our website.
Now the price of stepper motor is affordable, if you have needs, please leave us a message.
