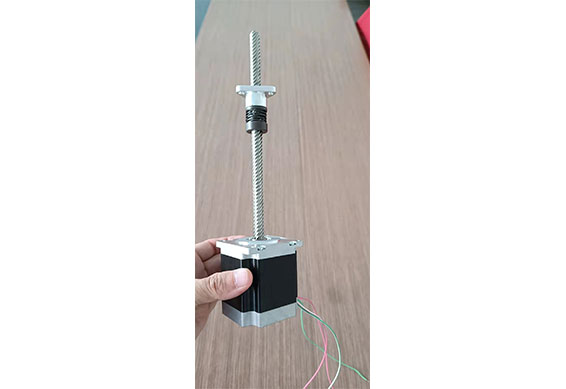

NEMA 23 LEAD SCREW MOTOR
ACME lead screw with high precision, and the lead screw resolution is ±0.017mm.
High-density plastic nuts and their life can be over 2 million times.
Support to integrated with RS232/RS485, CAN communication protocol.
NEMA 23 LEAD SCREW MOTOR CHARACTERISTIC PARAMETER
|
LC23D-75A20 |
|
|
BODY LENGTH |
42.3mm |
|
RATED VOLTAGE (Vm) DC |
2.6 |
|
AMPS/PHASE |
2 |
|
RESISTANCE/PHASE Rm (OHMS) |
1.3 |
|
INDUCTANCE/PHASE (MH @ 1000Hz) |
3.2 |
|
HOLDING TORQUE (N-cm) MIN |
75 |
|
STEP ANGLE (DEGREES) |
1.8 |
|
STEP ACCURACY (NON-ACCUM)% |
±5 |
|
LC23D-105A30 |
|
|
BODY LENGTH |
53.3mm |
|
RATED VOLTAGE (Vm) DC |
2.25 |
|
AMPS/PHASE |
3 |
|
RESISTANCE/PHASE Rm (OHMS) |
0.75 |
|
INDUCTANCE/PHASE (MH @ 1000Hz) |
2.5 |
|
HOLDING TORQUE (N-cm) MIN |
105 |
|
STEP ANGLE (DEGREES) |
1.8 |
|
STEP ACCURACY (NON-ACCUM)% |
±5 |
NEMA 23 LEAD SCREW MOTOR TORQUE CURVE
If you want to know more stepper motor faq, please visit our website.
Now the price of coreless brushless motor is affordable, if you are interested, please contact us.
