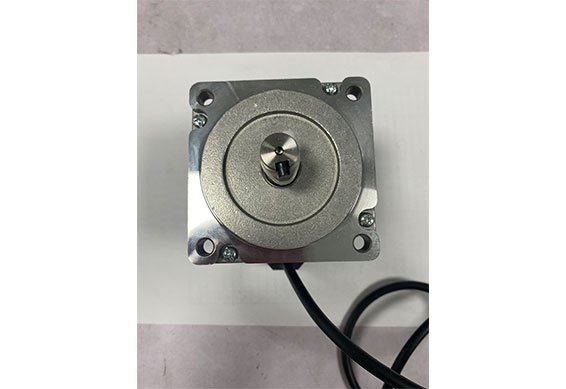

NEMA 34 STEPPER MOTOR
China NEMA 34 stepper motor is a standard hybrid stepper motor, with a step angle is 1.8°.
NEMA 34 SQUARE STEPPER MOTOR BODY SIZE
NEMA 34 SQUARE STEPPER MOTOR CHARACTERISTIC PARAMETER
|
STEP ANGLE |
1.8°±5% |
|
NO. OF PHASES |
4 |
|
RATED VOLTAGE |
4.09 V |
|
RATED CURRENT |
4.5 A |
|
RESISTANCE |
0.79 ohm±15% AT 25° |
|
INDUCTANCE |
7.63 mH±20% AT 1kHz, 1Vrms |
|
HOLDING TORQUE |
4.4 N.m(624 oz.in)TYP. |
|
RUNNING TORQUE(AT --PPS) |
--V.DC, --A/PHASE |
|
DIELECTRIC STRENGTH |
500V A.C/MIN. |
|
INSULATION RESISTANCE |
100MΩ+/MIN. |
|
INSULATION CLASS |
CLASS B |
|
TEMPERATURE RISE |
80K MAX. |
|
ROTOR INERTIA |
1850 g.cm²(2.63 oz.in²) |
|
WEIGHT |
APPROX. 1000g(2.21 oz) |
|
ALLOWABLE THRUST LOAD |
60 N |
|
ALLOWABLE RADIAL LOAD |
220 N(ON THE SHAFT END) |
|
OPERATION AMBIENT TEMP. |
‘-20℃---+50℃ |
|
OPERATION AMBIENT HUM. |
15%----90% |
|
LIFE |
5000HOURS |
NEMA 34 SQUARE STEPPER MOTOR TORQUE CURVE
SPEED VS TORQUE CURVE
MODEL: HEM-34D2404
LOT NO.: 2021-07-26
|
VOLTAGE |
24V.D.C |
○ |
SUPPLY |
|
WINDING |
|
CURRENT |
4.5A/PHASE |
○ |
PEAK |
|
AVE |
|
EXCITATION |
Full step |
|
|
|
|
|
DRIVE CIRCUIT |
DM542 |
|
UNIPOLAR |
# |
BIPOLAR |
|
INERTIA LOAD |
25000g-cm2 |
|
|
|
|
NEMA 34 SQUARE STEPPER MOTOR WIRING.
If you want to know more details of NEMA 34 dimensions pdf, please visit our website.
As a stepper motor manufacturer in china, we will do our best to meet all the needs of customers.
Now the price of NEMA stepper motor is low, anything you need, please leave us a message.
