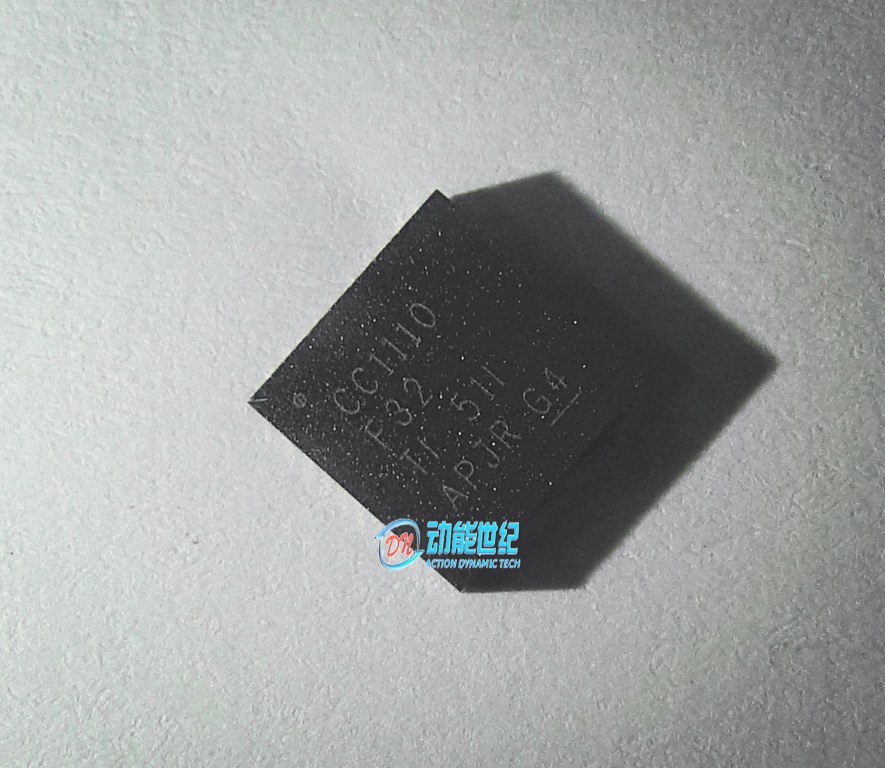

New Arrival Hot Sale CC1110 CC1110F32 CC1110F32RHHR For IC Sub-1 GHz wireless MCU VQFN3...
Quantité : 6000 Prix : $1.7
The CC1110Fx, CC1111Fx is a true low-power sub- 1 GHz system-on-chip (SoC) designed for low power wireless applications. The CC1110Fx, CC1111Fx combines the excellent performance of the state-of-the-art RF transceiver CC1101 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and up to 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations.
-
Radio
-
High-performance RF transceiver based on the
market-leading CC1101 -
Excellent receiver selectivity and blocking
performance - High sensitivity (–110 dBm at 1.2 kBaud)
- Programmable data rate up to 500 kBaud
-
Programmable output power up to 10 dBm
for all supported frequencies -
Frequency range: 300 – 348 MHz, 391 – 464 MHz
and 782 – 928 MHz - Digital RSSI / LQI support
-
High-performance RF transceiver based on the
-
Low Power
-
Low current consumption (RX: 16.2 mA at 1.2 kBaud, TX: 15.2
mA at −6 dBm output power) -
0.3 µA in PM3 (the operating mode with the lowest
power consumption) -
0.5 µA in PM2 (operating mode with the second lowest power
consumption, timer or external interrupt wakeup) - RoHS Compliant 6 mm × 6 mm QFN-40 Package
-
Low current consumption (RX: 16.2 mA at 1.2 kBaud, TX: 15.2
-
MCU, Memory, and Peripherals
-
High performance and low power 8051 microcontroller
core. - Powerful DMA functionality
- 8/16/32 KB in-system programmable flash, and 1, 2, 4 KB RAM
- Full-Speed USB Controller with 1 KB FIFO (CC1111Fx)
- 128-bit AES security coprocessor
- 7 – 12 bit ADC with up to eight inputs
- I2S interface
- Two USARTs
- 16-bit timer with DSM mode
- Three 8-bit timers
- Hardware debug support
- 21 (CC1110Fx) or 19 (CC1111Fx) GPIO pins
- SW compatible with CC2510Fx, CC2511Fx
-
High performance and low power 8051 microcontroller
-
General
- Wide supply voltage range (2.0V – 3.6V)
- RoHS compliant 6×6 mm QFN 36 package
Personne à contacter : Yolanda Zhou, +86 755 82539044 ext 153
Bonne affaire : acheter au vendeur
