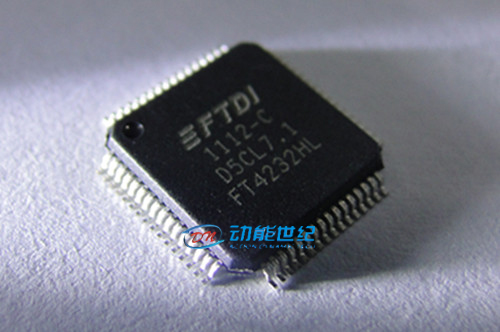

New Arrival Hot Sale FT4232 FT4232HL For IC USB 2.0 Hi-Speed (480Mb/s) to UART QFP64 FT...
Détails
Chine (Rép. pop) Divers
Divers

New Arrival Hot Sale FT4232 FT4232HL For IC USB 2.0 Hi-Speed (480Mb/s) to UART QFP64 FT...

Quantité : 6000   Prix : $5.08

The FT4232H is FTDI's 5th generation of USB devices. The FT4232H is a USB 2.0 Hi-Speed (480Mb/s) to UART IC. It has the capability of being configured in a variety of industry standard serial or parallel interfaces.
The FT4232H features 4 UARTs. Two of these have an option to independently configure an MPSSE engine, this allows the FT4232H to operate as two UART/Bit-Bang ports plus two MPSSE engines used to emulate JTAG, SPI, I2C, Bit-bang or other synchronous serial modes.
The FT4232H is available in Pb-free (RoHS compliant) 64-pin LQFP and QFN packages.

Single chip USB to quad serial ports with a variety of configurations.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
Two Multi-Protocol Synchronous Serial Engine (MPSSE) on channel A and channel B, to simplify synchronous serial protocol (USB to JTAG, I2C, SPI or bit-bang) design.
Independent Baud rate generators.
RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
FTDI's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
Optional traffic TX/RX indicators can be added with LEDs and an external 74HC595 shift register.
Adjustable receive buffer timeout.
Support for USB suspend and resume conditions via PWREN#, SUSPEND# and RI# pins.
Highly integrated design includes +1.8V LDO regulator for VCORE, integrated POR function and on chip clock multiplier PLL (12MHz – 480MHz).
FTDI FT232B style, asynchronous serial UART interface option with full hardware handshaking and modem interface signals.
Fully assisted hardware or X-On / X-Off software handshaking.
Localisation : , 518031 Shenzhen,
Personne à contacter : Yolanda Zhou, +86 755 82539044 ext 153
