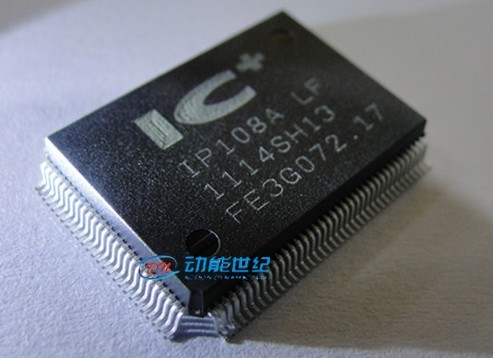

New Arrival Hot Sale IP108 IP108A IP108ALF For IC Fast Ethernet Transceiver QFP128 IC+...
Quantité : 5000 Prix : $1.45
The IP 108A is a highly integrated octal PHY transceiver for 10Base-T, 100Base-TX and 100Base-FX Fast Ethernet applications. This device is implemented with advanced 0.18um CMOS process technology for low power consumption. For the high port count switch design such as 16 or 24 or 32-port, the IP 108A can simplify the system design and ensure the targeted performance..
IP108A can be programmed to operate in various modes through either hardware (hardware strapping pin) or software control (registers setting via SMI). It also supports SS-SMII interface to MAC controller to reduce the pin- count.
Feature :
- Integrates eight-port 10Base-T, 100Base-TX and 100Base-FX transceivers in a single chip.
- Flexible 8-port 100Base-FX configuration.
- Supports auto crossover function and force MDIX function.
- Supports auto-negotiation function.
- Flexible functional configuration through either pin setting or register programming.
- Supports SS-SMII interfaces.
- Supports BaseLine Wander (BLW) compensation.
- Provides direct drive mode and serial data latch LED display mode.
- Embeds DSP-based PHY Transceiver technology to improve the cable driving performance
- Adjustable current driving capabilities
- Adjustable SS-SMII interface timing
- Provides power-on LED diagnostic function
- Power supply: Selectable 3.3V/1.95V for I/O 1.95V power supply for core
- Supports Automatic Power Saving (APS) Mode
- Requires only one external clock source
- 0.18u CMOS technology
- 128Pin PQFP package
