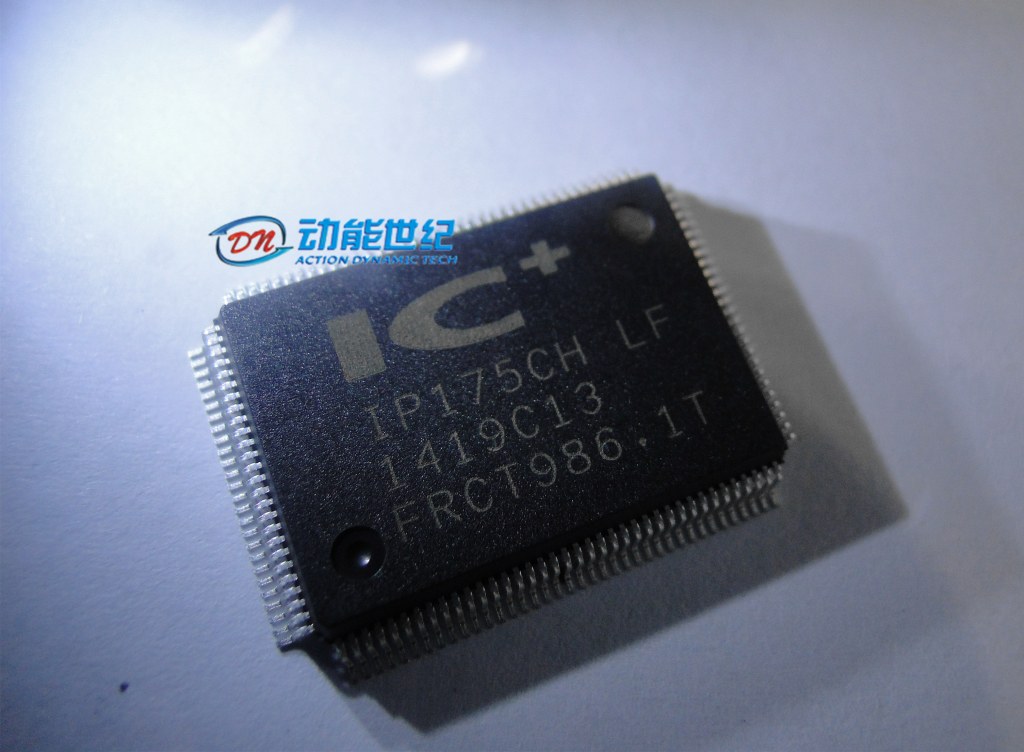

New Arrival Hot Sale IP175C IP175CH IP175CHLF For IC Ethernet Integrated Switch QFP128...
Quantité : 8000 Prix : $1.1
IP175CHLF new and original in stock! Action Dynamic.
IP175C/IP175CH integrates a 6-port switch controller, SSRAM, and 5 10/100 Ethernet transceivers. Each of the transceivers complies with the IEEE802.3, IEEE802.3u, and IEEE802.3x specifications. The DSP approach is utilizedfor designing transceivers with 0.18um technology; they have high noise immunity and robust performance. IP175C/IP175CH operates in store and forward mode. It supports flow control, auto MDI/MDI-X, CoS, port base VLAN, bandwidth control, DiffServ, SMART MAC and LED functions, etc. Eachport can be configured to auto-negotiation or forced 10M/100M, full/half duplexmode. Using an EEPROM or pull up/down resistors on specified pins can configure the desired options.
IP175A PCB compatible (pins compatible)
Besides a 5-port switch application, IP175C/IP175CH supports three MII/RMII ports for router application, which supports 4 LAN ports, one WAN port and one HOME/PNA or Access point. The external MAC can monitor or configure IP175C/IP175CH by accessing MII registers through SMI0. MII/RMII port also can be configured to be MAC mode. It is used to interface an external PHY to work as a 5+1 switch. Through SMI1 IP175C/IP175CH can monitor and configure external PHY.
Personne à contacter : Yolanda Zhou, +86 755 82539044 ext 153
Bonne affaire : acheter au vendeur
Nous vous invitons à lire nos conditions générales d'utilisations. Vous pouvez aussi vous rendre sur nos FAQ et consulter notre page d'informations sur les risques liés à la contrefaçon.
Cette page concerne les importateurs et exportateurs de New Arrival Hot Sale IP175C IP175CH IP175CHLF For IC Ethernet Integrated Switch QFP128... Rechercher dans la catégorie : Divers Rechercher dans la catégorie : arrival, ip175chlf, ethernet, integrated, ip175c, ip175ch, sale |
