NFC/RFID Antenna
This is a ready to use NFC antenna that can work in 13.56MHz. At the end of the wire, the dielectric material is stripped off, which helps you solder the NFC antenna to your device, or plugin to the breadboard.
Cowin support to custom antenna and has a R&D team with 20 engineers who can develop more than 5 kinds of new products for customer option according to clients' specifications. As for NFC/RFID antenna, Cowin is your best choice for various types of NFC/HFRFID PCB antenna featured either with directional reader, high gain and long range.
Features of NFC/RFID Antenna
Wire Diameter: 0.4mm
Weight: 0.7g
Antenna Dimension: 40.5x 17.8x 0.5mm
Frequency: 13.56MHz
Specification of NFC/RFID Antenna
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
13.56MHz |
|
Gain |
1dBi |
|
|
V.S.W.R |
≤2.5 |
|
|
Impedance |
50Ω |
|
|
Antenna size |
40.5x 17.8x 0.5mm |
|
|
Polarization |
Linear |
|
|
Mechanical |
Inner Material |
Copper |
|
Connector type |
Soldering or customizable |
|
|
Mounting Method |
Soldering |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|

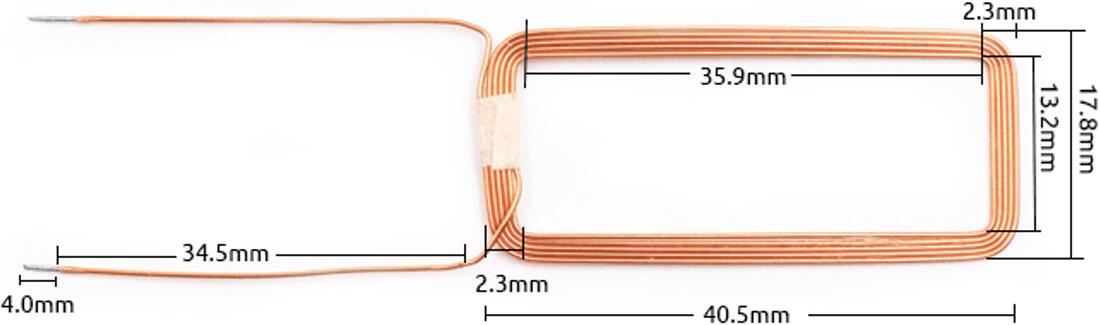

Drawing of NFC/RFID Antenna
Cowin is a professional 5g antenna companies and rfid antenna manufacturers, we provide rfid antenna china, passive rfid antenna, high gain rfid antenna, directional rfid reader, rfid patch antenna, rfid loop antenna, hf rfid antenna, 4g external antenna. want to know more? Contact us.
