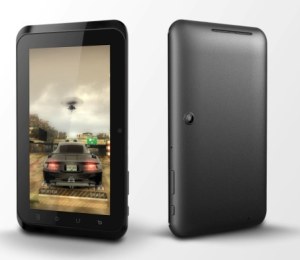

NFC Tablet

Emdoor Company is the first one launched Zigbee/Z-Wave/RFID/NFC tablet PC, we offer a full line of LF/HF/UHF tablet readers, which are widely used in security, intelligent transportation, logistics, asset management, financial, education, medical care, military industry, personnel identification management, parking lot access control, etc.

Main function

Amologic Cortex A9, single core and dual core optional

GPU dual Mali-400

RAM 1GB DDR3

Storage 8GB Standard ( Max 32GB)

7inch 5 point Multi-Touch Capacitive

IPS 1024*600

Android 4.0.3 system

With full features but optional

3G built-in: WCDMA/EVDO/HSDPA, support calling

Bluetooth 4.0

GPS built-in

Wi-Fi 802.11 b/g/n

SD Support High-Speed 32GB

Camera Front 0.3MP / Rear 2MP (5M optional)

NFC Module:

NXP PN544 128K/C2 ROM44kB EEROM

13.56MHz

Distance : < 10cm

Low power consumption control

Can be read with ISO14443A/B, ISO15693, Mifare, Felica agreement card

Peer to peer data transmission (P2P mode)

Built-in antenna, antenna type: magnetic FPC

Other Modules optional:

Zigbee Function: TI CC2530 Chipset

Z-Wave Function: ZW0301 Chipset

NFC Function: Support 14443/15693/Mifare/Sony Felica

HF RFID 13.56M Function: Support 14443A/15693

UHF RFID Function: Support18000 6C

LF 125K RFID support EM400X, EM4050, EM4150, EM4070, EM4170

Skyp: selinatrade
