Niobium Products

Niobium, English name: Niobium, element symbol: Nb, atomic number 41, is a VB group metal. Niobium has a density of 8.57g/cm³, a melting point of 2477°C, and a boiling point of 4744°C. Niobium is a rare high melting point metal with silvery gray, soft texture and malleability.

Different Kinds of Niobium Products From HSG

01

Niobium Powder

Metal niobium can be made from electrolytic molten potassium sevofluronobate, or sodium metal can be used to reduce potassium sevofluronobate or aluminum metal to reduce niobium pentaoxide.

View More 

02

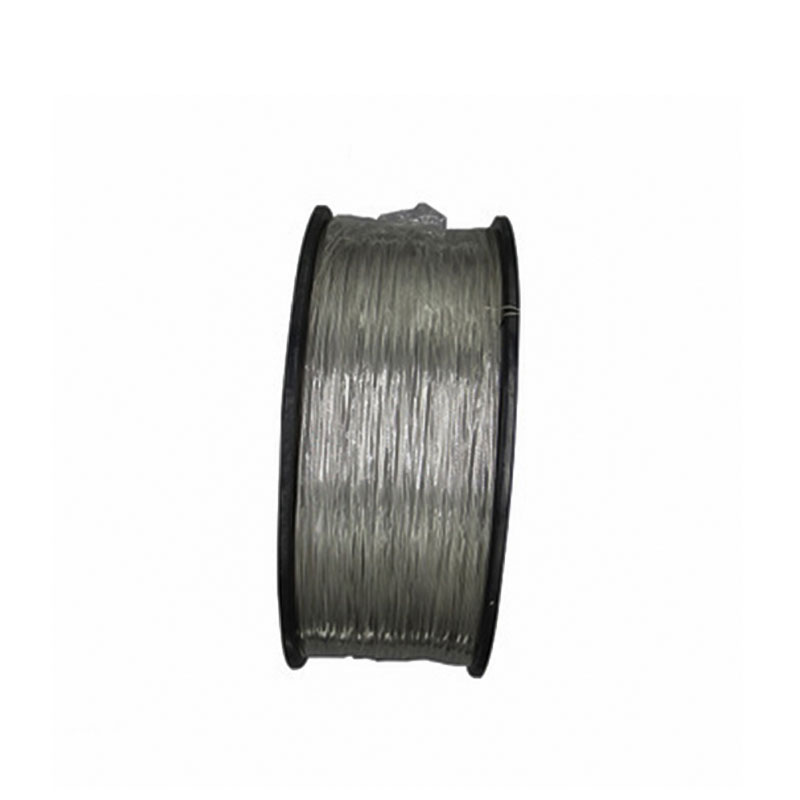

Niobium Wire

Pure niobium is used to remove residual gases in electron tubes. Adding niobium into steel can improve the oxidation resistance of steel at high temperature and improve the welding performance of steel. Niobium is also used in the manufacture of high temperature cermet.

How is Niobium Products Produced and Manufactured?

The main preparation methods of niobium metal include carbothermal reduction method to produce niobium, thermite reduction method to produce niobium (see aluminium thermite reduction method to produce iron niobium) and sodium thermal reduction method to produce niobium powder, followed by molten salt electrolysis method to produce niobium powder and halide niobium reduction method. The production of niobium by carbothermal reduction of niobium pentoxide is the most widely used method in industry. Thermite reduction method does not need to be carried out under vacuum condition, the equipment is simple and easy to operate, but the product purity is low, the aluminum content of niobium is high, and it needs to be further purified by electron beam melting to remove impurities. Niobium is rarely used to make capacitors, so sodium reduction is rarely used. Different from tantalum, niobium has two electrolysis methods: molten salt electrolysis and aqueous electrolysis, but aqueous electrolysis has not been applied in industrial production. Using niobium pentachloride as raw material, the reducing agents of niobium are hydrogen, sodium and magnesium (see niobium tantalum chloride separation). Niobium pentachloride hydrogen reduction products of high purity, mostly used in metallic materials or nonmetallic materials for niobium coating.

Benefits of Niobium Products

01

Niobium does not react with air at room temperature, nor is it completely oxidized at red heat in oxygen.

02

Niobium can be directly combined with sulfur, nitrogen and carbon at high temperature.

03

Niobium does not react with inorganic acids or bases and is insoluble in aqua regia, but is soluble in hydrofluoric acid.

If you are looking for a reliable refractory metal company, don't hesitate to contact us!
