Nitrogen Injection Plant Explosion And Fire Prevention System For Oil Immersed Transformers And Shunt Reactors

We are sole China manufacturer of high voltage current transformer fire protection system, please be kindly refer to our product's advantage as belows:

1. ) Unique fire suppression system can prevent the expansion of fire accident.
2. ) Unique fire suppression system can extinguish fire quickly without recrudescence.
3. ) Unique fire suppression system that can highly efficiently extinguish fire, is friendly to environment,
No secondary pollution.
4. ) Unique fire suppression system that cannot be restricted by geographical location and climate.
5. ) Unique fire suppression system that is free of after-sales service or few after-sales service. 6. ) Unique fire suppression system that can avoid transformer explosion and fire, nip the disaster in the bud.

Feature of Oil Transformer Fire Protection:

1. ) Extinguishing Fire Much Better Than CO2 and Water.
2. ) Special For Above 5MVA Oil Immersed Transformer
3. ) Nitrogen Injection and Oil Drainage
4. ) Sole Special Chinese Supplier, Top Quality, Low Price!
5. ) We got Patent and Certificates: CNAS, IAF, UCS, ISO9001: 2008, IEC Standard

Operation of Fire-fighting Cabinet:

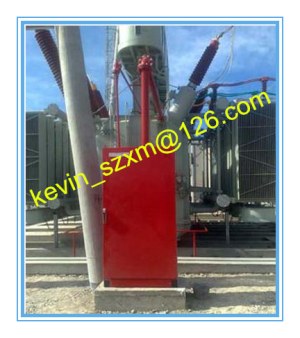

Fire-fighting Cabinet is a Nitrogen injection Oil drainage Device which is the most important executive organization, outline dimension 2000*1000*489(h*w*d), color red, weight 265KG. Generally installed in 3-5m away from the transformer. The structure is simple, easy to operate. Top of the pipe directly connected to the transformer tank.

Under normal circumstances, neednot any pulling the valves or mechanism in the cabinet, just inspect the situation of nitrogen pressure and check the connected components inside the cabinet, whether it is oil leakage or any damage, the normal nitrogen pressure is 15Mpa ( 20° C), it is normal that the pressure may be tinily affected by climate.

If the pressure is found lower than 10MPa, should add 99.99% purity nitrogen into the cylinder.
