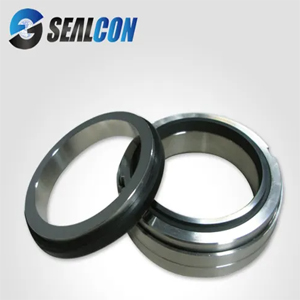

O RING MECHANICAL SEALS

O-rings are one of the most frequently used products in sealing applications, relatively inexpensive and reliable. O-rings come in many styles and shapes. The material required depends on temperature, pressure, chemical, and other environmental factors. Materials such as EPDM, Nitrile, Buna-N, Viton, FFKM are the most common materials that we supply. Applications range from garden hose couplings to critical aerospace or chemical plant duties.
Types of O Ring Mechanical Seal for Sale
As a china o ring supplier, we supply all standard types of materials in a range of Shore Hardnesses and colours. In addition to standard imperial and metric sizes, Sealcon also supply a wide variety of non-standard sizes. Please feel free to inquire us if you need any O-rings. Materials include; Nitrile, Silicone, EPDM, FKM, Viton, FFKM, and HNBR.
Application of O Seal Ring Mechanical
O-ring is mainly used in the fluid static application (For example, water, oil, air, chemicals solvent, chemicals, etc.).
The temperature range is from -60 ℃ up to 220 ℃.
The pressure in the static application should be less than 20MPa, which varies with different materials.
Sometimes O-ring is used in the dynamic application with the pressure less than 5MPa and also used in semiconductor vacuum seal.
Advantages of O Ring Mechanical Seals
Cost-effective
Reliable
Versatile
O Ring Seal Material
O-rings come in many styles and shapes. The o ring seal material required depends on temperature, pressure, chemical, and other environmental factors. The o ring material selection such as EPDM, Nitrile, Buna-N, Viton, FFKM are the most common materials that we supply. Applications range from garden hose couplings to critical aerospace or chemical plant duties.
Common Elastomer Materials of O Mechanical Seal Pumping Ring
Buna-N(NBR)
Buna-nitrile is the most common elastomer used in mechanical seals. Depending on the exact compound, Buna is good for moderate temperatures, from about -35 °F to about 250 °F. Buna's chemical resistance is narrow, and it is used mostly for water-based applications. Buna is the lowest cost elastomer used in mechanical seals.
Fluoroelastomer (Viton/FKM)
Fluoroelastomers (Viton) offer the best all-around chemical resistance value for mechanical seal applications. Fluoroelastomers can be used at continuous temperatures up to 400 °F. There are some applications — such as steam — and some specific chemicals — such as organic acids and ketones — where EPDM or Kalrez® are specified. While much more expensive than Buna, Viton is still moderately priced.
Ethylene Propylene(EPDM)
Ethylene propylene (EPDM) offers outstanding performance in steam and hot water. There are also specific chemical applications where EPDM is the best choice. EPDM is recommended for use up to 300 °F. EPDM is often priced between Buna and Viton.
Perfluorocarbon (FFKM)
FFKM offers excellent resistance to chemicals and extreme temperatures. Special compounds can operate beyond 300°C. FFKM is resistant to most chemicals including inorganic acids, alkalines, ketones, esters, s, fuels, and hot water. It is ideal for applications in aggressive chemical environments.Our Standard FFKM compound has outstanding heat resistance with service temperatures of -10°C to 310°C. Hangzhou Sealcon Fluid Machinery Co., Ltd can offer direct equivalents to Kalrez, Simrez, Perlast, Chemraz, grades.

Aflas

Aflas is a specialty, non-conventional fluoroelastomer. A cousin of Viton, it offers higher heat resistance and performs well in high concentrations of acids, oxidants, and alkalis. Aflas is usually somewhat more expensive than Viton.

Kalrez

Kalrez is usually the most expensive elastomer option available. With specialty compounds available for use with nearly any chemical, and the ability to withstand temperatures up to 600 °F, Kalrez is an amazing elastomer. O-rings often cost hundreds of dollars each, so Kalrez is only used where absolutely necessary.

Specialty Elastomers

There are a variety of specialty elastomers on the market, most of which compete with one of the above materials. Sometimes these are specified by a seal or pump OEM, and Infinity Pump can source these materials for you.

We can offer kinds of china rubber seal for sale, if you have needs, please contact us.

Localisation : A1-3-603 xixi center, wenyi west road, xihu district, Hangzhou, 310012 Xixi,
Personne à contacter : Michael Yu, +86 571 86958675
