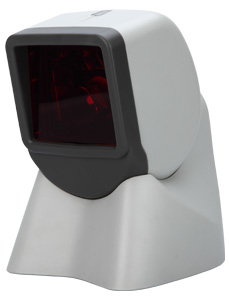

OD7190 Omni-Directional Laser Barcode Scanner
| Scan Performance | |
| Scan mode | Omnidirectional multiple scanning line 24 wrie mesh |
| Alarm mode | LED light alarm, Buzzer alarm |
| Scan rate | 2000 scans/sec |
| Depth of field | Up to 300mm @ 13 mill. 33 PCS 90% |
| Bit error rate | 1/800 million |
| Revolve angle | 1+/-36° |
| Barcode type |
EAN/UPC/JAN+Add-on, ISBN, Code128, EAN128, Code93, Code 39. Code32, Codabar, Interleaved 2 of 5, MSI-Plessey, Gs 1 dataBar compliance (symbol 1-9) scan pattern@10 cm |
| Electrical | |
| Input | +5V DC, 250mA |
| Output | 1.25Watt@ +5V DC |
| Interfaces | PS/2, USB, RS232 |
| Light | 650nm visible laser diode |
| Light level | 4800 LUX |
| Laser safety | IEC 825-1(1993)Class I, U.S.21CFR1040 Class IIa |
| Depth of field | Up to 300mm @13mill.33PCS 90% |
| Radio and TV interference | EN55024/22, FCC Part 15 class B, CNS 13438 |
| Electro static discharge(esd) | IEC801-2(1991) |
| Environmental | |
| Operating temperature | 0° ~ 40° |
| Storage temperature | -10° ~ 60° |
| Humidity | 20% ~ 95% RH |
| Drop | Designed to withstand 1.2m drops |
| Light level | Can resistive the interference of lamp –light and sun-shining |
| Physical | |
| Dimensions (LxWxH) | 120mm x 110mm x 147mm |
| Weight | 360 g |
| Color | Grey, black |
| Material | ABS + EVA |
