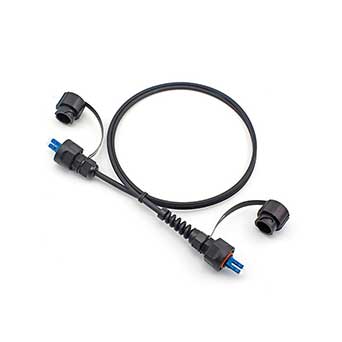

ODVA Outdoor Cable Assembly
Cost-effective solution for in-house termination. Low insertion loss and added loss. Height of attenuation. IP67 water, dustproof and corrosion-resistant. Plug has a tolerance-free design, free-floating on Z-axis. The material in the jumper cable is all-weather and UV-resistant.
Connector Types of ODVA Outdoor Custom Fiber Optic Assemblies
|
Type |
Reference |
Note |
|
|
LC |
IEC 61754-20 |
Single mode duplex |
APC: Green connectors UPC: Blue connectors |
|
Multimode duplex |
UPC: Grey connectors |
||
|
SC |
IEC 61754-4 |
Single mode duplex |
APC: Green connectors UPC: Blue connectors |
|
Multimode duplex |
UPC: Grey connectors |
||
|
MPO |
IEC 61754-7 |
Single mode |
APC: Black connectors APC: Black connectors |
|
Multimode |
PC: Black connectors |
||
|
MPT |
IEC 61754-7 |
Single mode |
APC: Black connectors APC: Black connectors |
|
Multimode |
PC: Black connectors |
||
Product Parameters (ODVA(SC) and ODVA(LC) )
|
Item |
Parameter |
|
|
Single mode |
Multimode |
|
|
Insertion loss |
Typical value≤0.15dB Maximum≤0.30dB |
Typical value≤0.15dB Maximum≤0.30dB |
|
Return loss |
≥60dB(APC) ≥50dB(UPC) |
≥30dB(UPC) |
|
Durability |
500 times a plug |
|
|
Operation Temperature |
-40 to + 85℃ |
|
Product Parameters (ODVA(MPO) )
|
Item |
Parameter |
|||
|
Single mode |
Multimode |
|||
|
Standard |
Elite |
Standard |
Elite |
|
|
Insertion loss |
Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
|
Return loss |
≥50dB(PC) ≥60dB(APC) |
≥55dB(PC) ≥65dB(APC) |
≥30dB(PC) |
≥30dB(PC) |
|
Durability |
500 times a plug |
|||
|
Operation Temperature |
-40 to + 85℃ |
|||
Features
1. Cost effective solution for in house termination.
2. Low insertion loss and added loss.
3. Height of attenuation.
4. IP67 water, dust proof and corrosion resistant.
5. Plug has tolerance free design, free floating on Z-axis.
6. The material in the jumpel cable are all-weather and UV-resistan.
7. ODVA(LC) , Mechanical performance: IEC 61754-20.
8. ODVA(SC) , Mechanical performance: IEC 61754-4 standard.
9. ODVA(MPO), Mechanical performance: IEC 61754-7 standard.
10. RoHS and REACH materials compliant.
Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.
As one of fiber optic products suppliers, we can offer types of related products for sale, anything you need, please contact us.
