OF Series
Quantité : 2000sqm/mo Prix : 500~2000usd/sqm
Outdoor Commercial Advertising LED Display
OF4 | OF5 | OF6 | OF8 | OF10S | OF10D | OF16S
Energy saving to save cost
Front maintenance to save space
Wifi, 4G, cloud, usb, remote control
All weather resistant for stable operation
High brightness provide perfect performance
Parameter
Value |
OF4 |
OF5 |
OF6 |
OF8 |
OF10S |
OF16S |
Pixel Pitch(mm) |
4 |
5 |
6 |
8 |
10 |
16 |
Pixel Matrix Per Sq.m |
62500 |
40000 |
27777 |
15625 |
10000 |
3906 |
Pixel Configuration |
SMD1921 |
SMD2727 |
SMD2727 |
SMD3535 |
SMD3535 |
SMD3535 |
Brightness (nits) |
6500 |
6500 |
6500 |
6800 |
7500 |
8000 |
Scan |
1/8 |
1/8 |
1/4 |
1/3 |
1/2 |
1/1 |
Module Dimension |
192x192mm / 0.63x0.63ft |
160x160mm / 0.52x0.52ft |
192x192mm / 0.63x0.63ft |
320x160mm / 1.05x0.52ft |
320x160mm / 1.05x0.52ft |
256x256mm / 0.84x0.84ft |
Cabinet Dimension |
960x960mm / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
1024x1024mm /3.36x3.36ft |
Cabinet Resolution |
192x192 |
192x192 |
160x160 |
120x120 |
96x96 |
64x64 |
Cabinet Weight |
44kg / 97Ib ( Iron) |
43kg / 95Ib (Iron) |
42kg / 93Ib (Iron) |
41kg / 90Ib (Iron) |
40kg / 88Ib ( Iron) |
46kg / 101Ib (Iron) |
Power Con. (Max / Avg) |
750 / 150 w/sq.m |
730 / 130 w/sq.m |
700 / 120 w/sq.m |
680 / 120 w/sq.m |
650 / 110 w/sq.m |
750 / 150 w/sq.m |
Service Access |
Front / Rear |
|||||
Refresh Rate (HZ) |
≥1920 |
|||||
Grey Scale (bit) |
16 |
|||||
Viewing Angle (H/V) |
140 / 140 |
|||||
IP Rate |
IP65 |
|||||
Input Voltage (AC) |
110V / 240V |
* Specifications and photos are subject to change without prior notice.
Where is LED display installed?

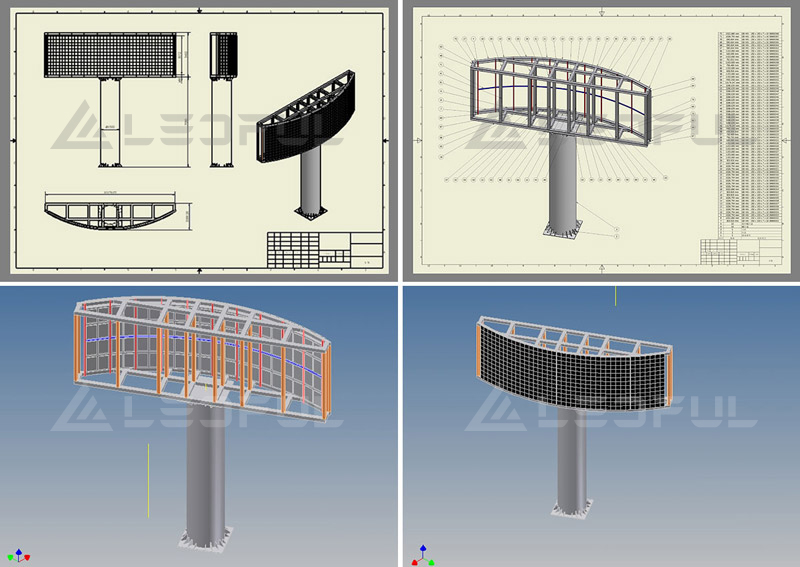

LEDFUL provide structure frame design drawing and installation suggestions.
Pillar / Pole LED display
Wall mounted LED display
How to control LED display?
By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.
Ultra High / Low Temperature
OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.
High Temperature
Low Temperature
SMD Performance and View Angle
Better contrast ratio and viewing performance Wide viewing angle increasing its value by covering more viewing
High Brightness & Auto Brightness
High bright and contrast ratio to make vivid color facing to the Sunlight.
Auto brightness saving energy besides protecting people eyes in night time.
Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc.
LEDFUL supply more design and more solutions.
How can we make Energy Saving LED display 30%?
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
OF Series More Features & More Advantages
3 times aging process
Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
Long service time and low attenuation by applying dual channels for heat dissipation
High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function
No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation
LEDFUL is a professional outdoor led screen manufacturer. We provide Rental Event LED Display, Fine Pitch LED Display, Sports Perimeter LED Display, outdoor LED advertising, led commercial advertising display screen, outdoor led advertising display, large led advertising screens, large advertising screens, large outdoor advertising screen, led advertising display screen and so on. Want to know about display led screens ltd? Please contact us.
