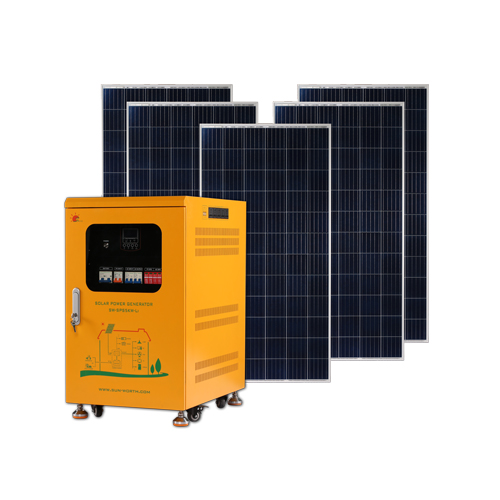

Off Grid 6~10KW Solar Power System with Lithium Battery
Dongguan Sunworth Solar Energy Co. Ltd, founded in 2008, is a high technology solar products supplier specialized in the R&D, manufacturing, and sales of solar modules, solar energy systems, and solar street lights, etc. Sunworth has passed ISO9001: 2008 and its products got the international authoritative certifications such as TuV, IEC, CE, ETL, and golden sun, etc.
AN off-grid PV energy storage system is the first choice for customers in remote areas without electricity supply. Different customers can choose different system power according to the daily power consumption.
Advantage of Off Off Grid 6-10KW Solar Power System with Lithium Battery
Rated Power: 6KW-10KW, pure sine wave output.
Built-in MPPT 60A/70A/80A MPPT solar controller.
MPPT PV controller tracking the maximum power point to achieve the maximum power output.
Simple installation. Just need to properly install the PV module and connect them to the integrated power cabinet. The system then can be used.
12 years of manufacture experience in PV product.Now the 10kw off grid solar system price is pretty reasonable.
Specifications of Off Grid 6-10KW Solar Power System with Lithium Battery
Technical Data
|
Model No. |
SW-SPS6KW-Li |
SW-SPS8KW-Li |
SW-SPS10KW-Li |
|
Solar Panel Power |
12x320Wp |
16x320Wp |
20x320Wp |
|
Lithium Battery |
9.6KWh |
14.4KWh |
17.28KWh |
|
Rated Power |
6KVA/6KW |
8KVA/8KW |
10KVA/10KW |
|
Surge Rating |
18KVA |
24KVA |
30KVA |
|
Max. Solar Charge |
MPPT 80A |
MPPT 120A |
MPPT 120A |
|
Max.AC Charge |
60A |
70A |
80A |
|
Input Voltage |
AC 220V/230V 50Hz |
||
|
Output Voltage |
AC 220V/230V 50Hz, 1x Flash Charge USB, 2x5V USB(2.1A) |
||
|
Protection |
Surge, Reverse polarity, Overload, Short circuit, etc. |
||
|
Operating Temperature |
Discharge: -20℃ ~50℃, Charge: 0℃~50℃ |
||
|
IP Rating |
IP22 |
||
|
Inverter Size |
650*380*225mm |
||
|
Battery Cabinet Ref. |
60×60×60 cm |
60×60×80 cm |
60×50×100 cm |
|
Weight(Ref.) |
520Kgs |
680Kgs |
930Kgs |
|
20GP |
23 sets |
18sets |
12 sets |
Common Loading(Ref.) of Off Grid 6-10KW Solar Power System with Lithium Battery
|
Individual load |
Power |
Qty |
Working hours day |
Power consumption per day |
|
LED Light |
5W |
1 |
6 |
30Wh |
|
TV(19' color) |
60W |
1 |
4 |
240Wh |
|
Computer |
60W |
1 |
4 |
240Wh |
|
Fan |
20W |
1 |
6 |
120Wh |
|
Refrigerator |
100W |
1 |
24 |
800Wh |
|
Fax |
150W |
1 |
0.5 |
75Wh |
|
Washing machine |
300W |
1 |
0.5 |
150Wh |
|
Printer |
250W |
1 |
0.5 |
125Wh |
|
Air conditioner |
1000W |
1 |
4 |
4000Wh |
