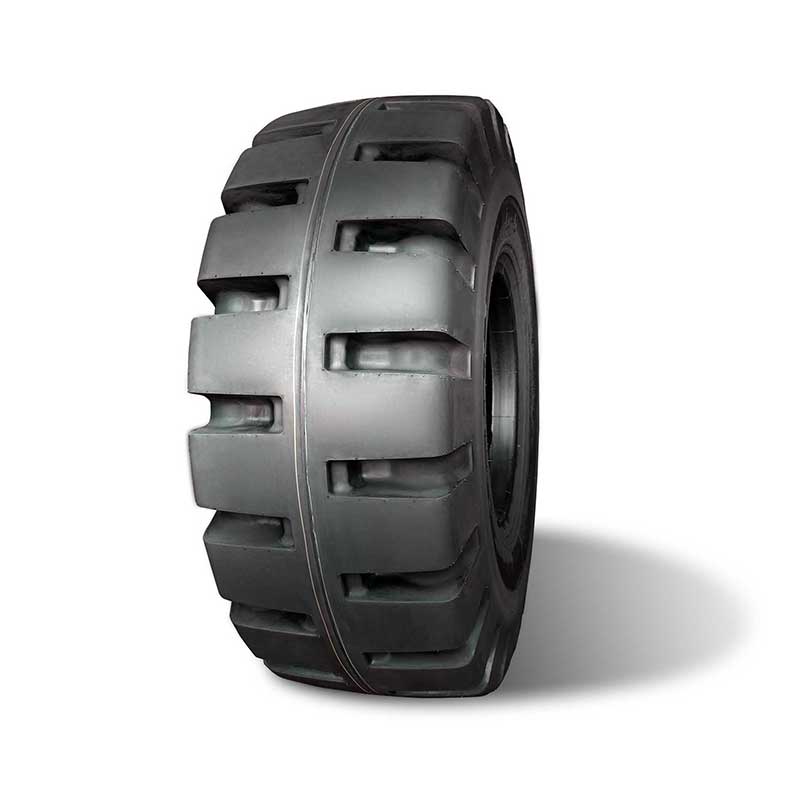

Off The Road Tire AE801 L-5
The extra-deep tread pattern of Aulice L-5 gives outstanding wear life potential and the sidewall/tread intersection design gives an excellent level of damage and cut resistance.
front end loader
wheel loader
excavator
Abrasion Resistance
Load Carrying Capacity
Puncture Resistance
Features of OTR Tyre AE801 L-5
Ultra-large deepen block pattern and high strength carcass design. Specially for mining quarries, underground working loaders, and harsh working conditions, applies on steel slag, sand and stone pavement.
Unique structure and formula can effectively increases cutting resistance, recapping rate and improves anti-explosion ability.
Technical Parameters of OTR Tyre AE801 L-5
|
Pattern Code |
Size |
PLY RATING |
TREAD DEPTH |
TT/TL |
Standard Rim |
Overall Dimension(mm) |
Max Load(kg) |
Max Pressure(kpa) |
|||
|
Section width |
Overall Dia |
50km/h |
10km/h |
50km/h |
10km/h |
||||||
|
L-5 |
23.5-25 |
40 |
70 |
TT/TL |
19.50/2.5 |
595 |
1675 |
12000 |
18000 |
600 |
750 |
|
L-5 |
17.5-25 |
24 |
58 |
TT/TL |
14.00/1.5 |
445 |
1400 |
5000 |
9000 |
400 |
625 |
Now the price of front end loader tires is affordable, if you have needs, please contact us.
As one of forklift tyre manufacturers, we have types of china truck tires for sale, anything you need, please leave sus a message.
