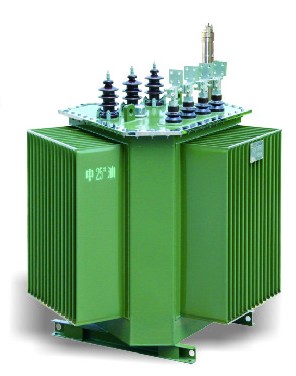

Oil immersed transformer

oil-immersed transformer of 3-phase equilibrium, compact structure, lower losses, slighter noise, less material consumption

Product Features

1. It is of 3-phase equilibrium, compact structure, lower losses, slighter noise, less material consumption by virtue of 3-dimensional wound core;

2. The active part of the whole transformer body sustains 3-phase symmetrical force while the clamping system is of frame structure, the result of which endue the transformer itself with enhanced mechanical strength and great short current withstand ability;

3. Transformer core is made by tightly winding several pieces of trapezoidal steel straps and the magnetic direction of silicon steel is remarkably consistent with the direction of core magnetic circuit, which can obviously eliminate vibration during operation and eventually reduce the noise to a minimum;

4. In an effect to fully ensure hermetization and reliability, drip-molding sealing elements, with surface specially treated, while electrical laminated wood is used to realize wonderful electrical insulation and great dielectric strength;

5.The usage of rust-removed, acid-cleaned and imported antirust paint coated oil tank and clamps make the fading of paint totally under control. Besides, the clamping bolts are of stainless steel and apparently add to your satisfaction;

6. Aiming to enjoy polished appearance, reinforce the mechanical strength as well as rust prevention, we creatively make stainless steel welded edges our design patent, which is at the same time protective for all the sealing elements;

7. Hermetical structure of the transformer fundamentally isolates the insulation oil from the atmosphere and thus slows down the aging of the transformer oil;
