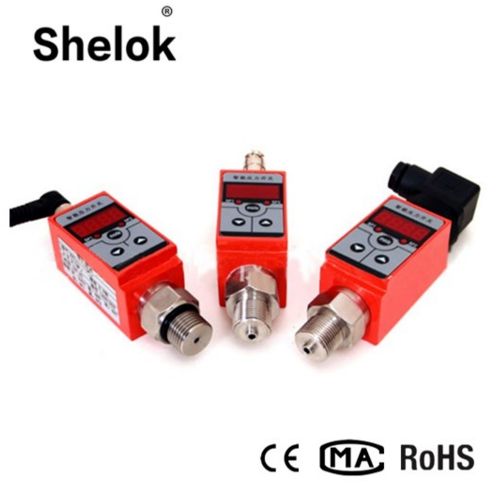

Oil water air pressure switch
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

Oil water air pressure switch

Quantité : 1piece   Prix : USD75

1.Description of oil water air pressure switch:

Pressure switch is a pressure measurement, display, intelligent digital pressure measurement and control products output, integrated control. This product is a full electronic structure, use front-end with baffle filled hydraulic resistance type pressure sensor, the output signal is composed of high precision, low drift amplifier processing, into the high precision A/D converter, the digital signals into the microprocessor can processing, through processing the signal control switch, monitoring and control of the pressure control system. Digital Air Pressure Switch is flexible to use, simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.

2.Specification of of oil water air pressure switch:

Name

oil water air pressure switch

Accuracy

≤±0.5%FS

Pressure

0-100Kpa... .100MPa

Power supply

12-36VDC (24VDC standard)

Output

4-20mA, 0-5V, 0-10V, 1-5V, 0-5V

Overload

1.5 times

Stability

≤0.2% /Y

Display

4 digits Led display

Thread optional

M20*1.5,G1/2,G1/4,NPT1/2,NPT/4,M14*1.5

Display range

-1999~9999

Work temperature

-20~80℃

Protection

IP65 or IP67 High magnetic compatibility

For more info:

Serena.wang@shelok.com

http://www.digital-pressure-sensor.com

Localisation : 1203b room, inland mansion port, No.9 gangwu road, 710026 logistics park & xi'an international trade, 710026 inland mansion port,
Personne à contacter : Serena Wang, +86 17795766255
