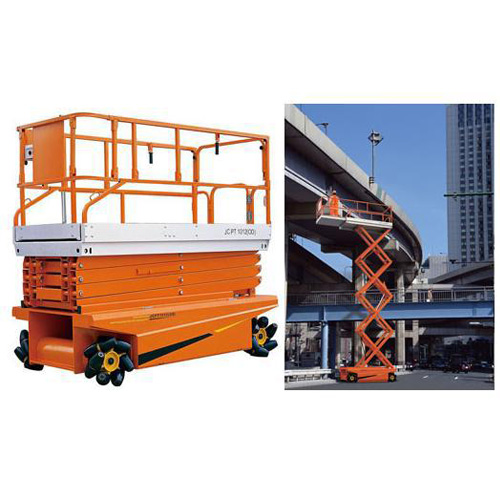

Omni Direction Self-Propelled Electric Scissor Lifts
Quantité : At least o Prix : 50-150000 USD
ATTACK is one of the leading professional Omni Direction Self Propelled Scissor lifts manufacturers, suppliers and factories in China. We can produce scissor lift according to your requirements.
Product Features:
Omni Direction self propelled electric scissor lift is mainly applied in the fixing, constructing, detecting and maintenance of steel structure workshop and sorts of aerial equipment. With character of omnidirection and lateral-step, it can be operated in condition which space is limited and working height is tall. CE certified.
- Structure: scissors, enable extended-platform, the setting of anti-press.
2)Sole control system, character of omnidirection, side drive.
3)Four-wheel drive, the direction of Mecanum wheel could be controlled separately by the control system.
4)Maximum speed: 4-5km/h.
5)Gradeability: 15%.
6)Pot-hole protection and tilt alarm.
7)Emergency down-valve device
8)OBD circuit fault code display
9)Engine restart protection
10)Engine glow plug preheating unit
11)Overload limit
12)Forward and backward extension platform
Parameters
|
Model |
JCPT1013(OD) |
JCPT1213(OD) |
|
|
S.W.L |
450kg |
400kg |
|
|
S.W.L On Extension |
112kg |
||
|
Max. Occupants |
2 |
||
|
Working Height(H1) |
10.00m |
12.00m |
|
|
Platform Floor Height(H2) |
8.00m |
10.00m |
|
|
Overall Length |
2.48m |
||
|
Overall Width |
1.39m |
||
|
Overall Height |
2.51m |
||
|
Platform Size |
2.27m×1.12m |
||
|
Platform Extension Size |
0.90×1.12m |
||
|
Ground Clearance |
0.08m |
||
|
Wheel Base |
1.80m |
||
|
Turning Radius |
0 |
||
|
Drive Motors |
4×48VAC/1.5kw |
||
|
Lifting Motor |
48VDC/2kw |
||
|
Travel Speed(Stowed) |
3.5km/h |
||
|
Travel Speed(Raised) |
0.8km/h |
||
|
Up/Down Speed |
62/65 sec |
79/72 sec |
|
|
Betteries |
8×6V/210Ah |
||
|
Integrated Charger |
48V/25A |
||
|
Maximum Working Slope |
3° |
||
|
Tyre |
￠460×240mm |
||
|
Gross Weight |
3120kg |
3280kg |
|
