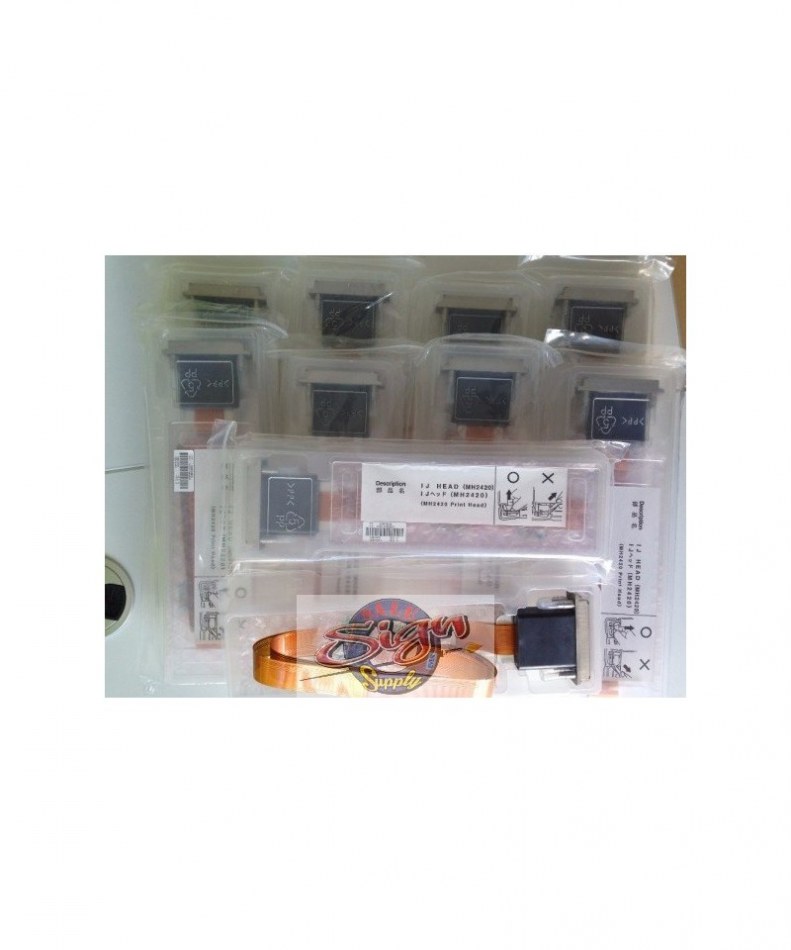

Original Ricoh GEN4 Printhead N220792 Print Head
Quantité : 1 Prix : 624,00 €
Ricoh GEN4 Printhead N220792
The Ricoh GEN4 greyscale printhead is suitable for a range of water, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty. This Ricoh GEN4 is available in two different cable lengths: 19cm long and 44cm long and a choice of hose barb ink inlet or o-ring sealed ink inlet.
Technical Specifications
- Size: 63 x 63 x 16,2 mm (excluding cables)
- Head Materials: SST, Ni and Epoxy Adhesive
- Nozzle Plate Surface: Non-coated SST
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing: 0,1693 mm
- Piezo Type: D33 Stacked PZT
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 60° C
- Native Drop Volume: 7 pl
- Drop Volume Range: 5-25 pl with greyscale
- Jetting Frequency: Up to 30 kHZ
- Life: 100 billion actuations per nozzle
Printer compatibility: Agfa : Jeti 1224 HDC / : Jeti 1224 HDC FTR / : Jeti 3020 Titan FTR, Digitex Gunsjet SR1808 / Gunsjet SR2508 / Gunsjet SR3208 / Gunsjet SF1914 / Gunsjet UF4547, DYSS Apollo GH1600-08F / Apollo GH1600-08F / Apollo GH1600-08SF / Apollo GH1600-10FM / Apollo GH1600-12S / Apollo GH1600-12SFWFV / Apollo GH2200-08F / Apollo GH2200-08SF / Apollo GH2200-08SR / Apollo GH2200-10FM / Apollo GH2200-12S / Apollo GH2200-16SFWFV / Apollo GH2600-08F / Apollo GH2600-08SF / Apollo GH2600-10FM / Apollo GH2600-12S / Apollo GH2600-12SFWFV / Apollo GF2616-08F / Apollo GF2616-10FFW / Apollo GF2616-10FRW / Apollo GF2616-12F / Apollo GF2616-12S / Apollo GF2616-14SFW / Apollo GF2616-14SRW / Apollo GF2616-16F / Apollo GF2616-16SFWFV / Apollo GF2616-16SRWRV, Gandy Digital Domin8tor / Pred8tor, d.gen Teleios Grande
Original Ricoh GEN4 Printhead N220792
Product name original ricoh gen4 printhead
Original yes
MOQ 1 Set
Suitable printer Mimaki UJF-3042
Technical Specifications:
- Size: 63 x 63 x 16,2 mm (excluding cables)
- Head Materials: SST, Ni and Epoxy Adhesive
- Nozzle Plate Surface: Non-coated SST
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing: 0,1693 mm
- Piezo Type: D33 Stacked PZT
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 60° C
- Native Drop Volume: 7 pl
- Drop Volume Range: 5-25 pl with greyscale
- Jetting Frequency: Up to 30 kHZ
- Life: 100 billion actuations per nozzle
