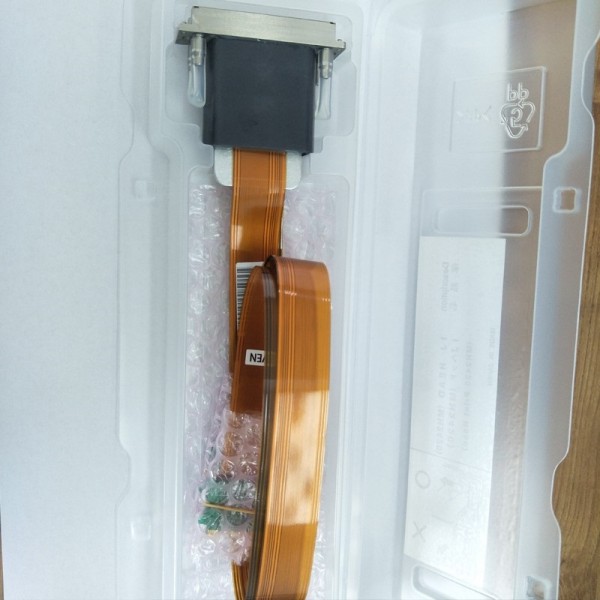

Original Ricoh GEN4L 15PL MH2620 Printhead

Quantité : 1   Prix : $ 590

Ricoh GEN4L 15PL Printhead MH2620

Ricoh GEN4L 15PL Printhead MH2620 is appropriate for a scope of oil, water, solvent and UV printers, including the first D.Gen Teleios Grande, D.Gen Teleios (TJ-2600) and Teleios (TJ-3333). This printhead has a coordinated radiator and thermistor. This is Ricoh unique printhead and it is secured by a producer guarantee.

This printhead is not perfect with the more up to date D.Gen Teleios Grande G5 or Teleios Grande/H6. These printers utilize Ricoh GEN5 Printhead Water (PPHRI18045).

Technical Specifications

– Size: 13,2 x 120 x 75,5 mm (excluding cables)
– Head Materials: SST, Ni and Epoxy Adhesive (direct contact with ink)
– Nozzle Plate Surface: Non-wet coating
– Number of Nozzles: 2 x 192 nozzles
– Nozzle Spacing: 0,1693 mm
– Piezo Type: D33 Stacked PZT
– Temperature Control: Integrated Heater and Thermistor
– Operator Temperature range: Up to 80° C
– Native Drop Volume: 15 pl
– Drop Volume Range: 15-45 pl
– Jetting Frequency: Up to 30 kHZ
– Life: 100 billion actuations per nozzle
