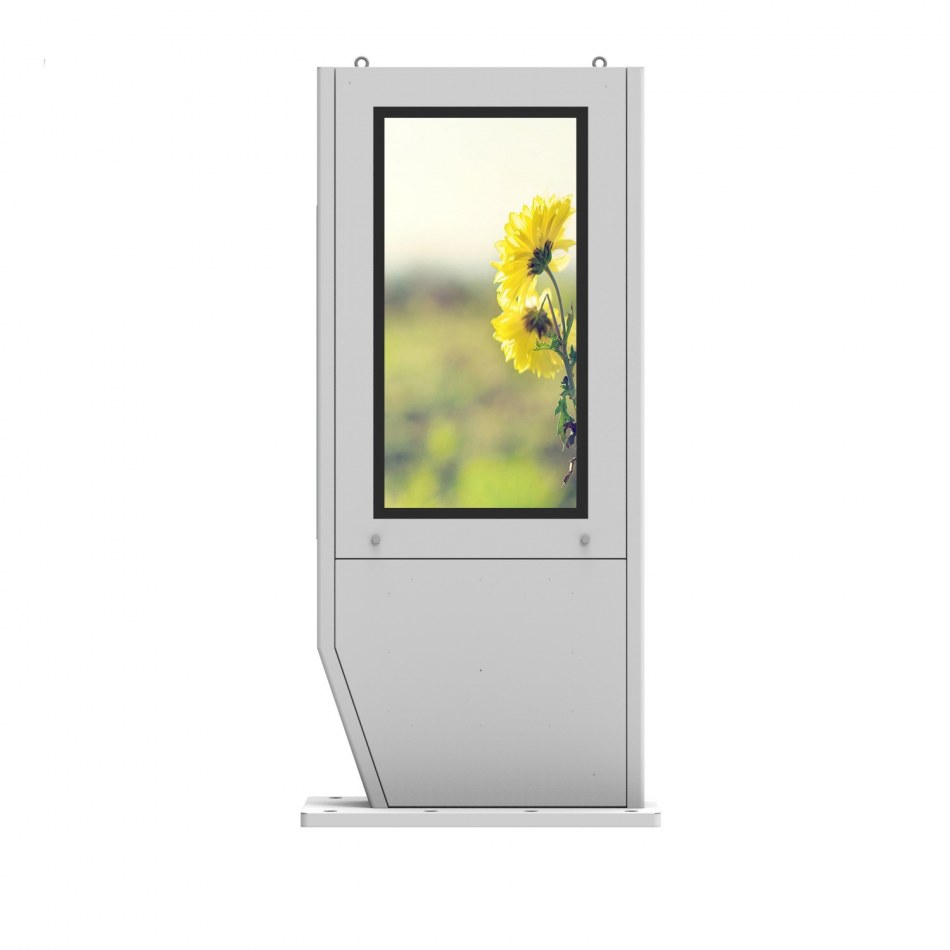

Outdoor Floor Standing LCD Advertising Display
Shenzhen Champion New Media Technology Company is a professional digital display company, and national high tech enterprise with OEM/ODM service ,after 14 years of development,our business field has extended to R&D ,production and selling of the whole range of new multiple media products combined intelligent display technology and communication,high tech ,with 14,000 square meters production base. We provide digital interactive displays, lcd advertising display, indoor digital advertising screens and smart blackboard for customer.
Champion outdoor touch kiosk that can play cheap outdoor digital signage, were designed with high brightness, anti-glare tempered glasses, and strong metal cases.We provide outdoor advertising screens for sale. And the outdoor digital signage displays price is very reasonable.
Outdoor outdoor advertising player which used outdoor lcd advertising, play an important part in the advertising field, such as bus station, Plaza, Park, Gas station, etc.
Features of Outdoor Floor Standing LCD Advertising Display
With special usage scenarios, outdoor advertising kiosks have some special requirements in both surface treatment and also the safety system for electricity,anti-dust level, waterproof level, cooling system, etc. To get the best advertising result under high brightness situations outdoor advertising displays were designed with special features.
1. High-brightness: with super bright led backlight
To get the advertising content attractive enough for customers, outdoor advertising signages were designed to use high brightness LEDs, so that customers can see the content in sunshine or other bright light situations.
2. Efficient cooling system :
In outdoor situation, the advertising kiosks will get hot very easily, especially in Summer, the temperature for outdoor kiosks may reach to 60-degree celsius, Champion outdoor advertising displays were designed with a high-efficiency cooling system to keep the working environment cooling down, which enable outdoor advertising displayers can use for longer lifespan to save costs for customers.
3. Safe anti-electricity leaking design :
Many outdoor displays will be still working in raining/hurricane weather, when will be some risk for short circuit or electricity leaking, once it happens, people's life will be in danger. The champion design team always taking safety in a basic place to consider, with our anti-electricity leaking system, our advertising kiosks will be safe to use in some extreme weather situations, without worrying about safety.
4. Auto light adjust system ;
Built-in light sensors enable Champion Outdoor advertising displays to adjust the brightness according to the environment, which makes it more energy-saving and more eco-friendly.
Specification of Champion Outdoor Floor Standing LCD Advertising Display
(Normal Sized, all specifications can be customized)
|
Model |
CP-ADFS55OD |
CP-ADFS65OD |
CP-ADFS75OD |
||
|
OS System |
CPU |
RK3288 Quad-core 1.8G |
|||
|
System |
Android 5.1.1 (Optional) |
||||
|
GPU |
Mali-T764 |
||||
|
Memory |
DDR3 2G |
||||
|
HD |
EMMC8G Support SD card |
||||
|
Connection to network |
Ethernet/ WIFI /4G (optional) |
||||
|
Interface |
Input |
2*USB HOST,1*USB OTG,1*RJ45,1*SD |
|||
|
Output |
HDMI*1 |
||||
|
Supported Media |
Image format |
BMP / JPEG / PNG / GIF |
|||
|
Audio format |
MP3 8Ω10W*2 |
||||
|
Vedio format |
wmv,avi,flv,rm,rmvb,mpeg,ts,mp4 |
||||
|
Management |
Control System |
CMS |
|||
|
Software function |
Support 1080P FHD decode ,Original Android ,support customized App |
||||
|
Update |
OTA remote update / Manual Update |
||||
|
Screen |
Panel size |
55" |
65" |
75" |
|
|
Display Area |
1209*680mm |
1428.48*803.52mm |
1649.66*927.936 mm |
||
|
Brightness |
2000cd/m2 |
||||
|
Panel Brand |
LG/Sharp/BOE |
||||
|
Screen scale |
9: 16 |
||||
|
Resolution |
1920(RGB)*1080 |
3840*2160 |
|||
|
Viewing angle |
89/89/89/89 (Min.)(CR≥10) |
||||
|
Display Model |
IPS ,Normally Black,Transmissive |
||||
|
Colors |
16.7M |
10-bit(D) 1.07 B |
16.7M |
||
|
Pixel Pitch |
0.630*0.630 mm |
0.372*0.372mm |
0.630*0.630 mm |
||
|
Contrast ratio |
4000: 1 |
5000: 1 |
1200: 1 |
||
|
Safty System |
Temperature Control |
Temperature Sensor to control cooling fan |
|||
|
Electricity leakage protection system |
AC100V - 240V 50Hz/60Hz 16A leakage preventing switch |
||||
|
Other protection |
overload protection ,6mm AR tempered glass |
||||
|
Power |
Voltage |
AC100V - 240V 50Hz/60Hz |
|||
|
Plug type |
EU US AU UK |
||||
|
Body |
Protected Shell |
Tempered Glass |
|||
|
Case |
Cold-rolled steel plate. |
||||
|
Frame |
Aluminium |
||||
|
Working Environment |
Working Temperature/Humidity |
-40~70℃ ,10-90% |
|||
|
Temperature |
Input Voltage (V) |
DC12V / DC48V |
|||
|
Working Temperature/Humidity |
-40~65℃ 10-90% |
||||
|
Storage Temperature |
-40~70℃ |
||||
|
Interface |
DC jack,Cooling Fan power jack,Temperature sensor |
||||
|
Camera |
USB Camera |
Pixel |
2M |
||
|
Resolution |
1280*720 |
||||
|
DSP solution |
SONIX |
||||
|
LENS structure |
6G+IR |
||||
|
Max Speed |
1-30fps |
||||
|
Focus Distance |
80cm |
||||
|
View Angle |
90° |
||||
|
Working Temperature |
-20°C~70°C |
||||
|
Web Camera |
Sensor |
1.3M 1/3〞ARO130 CMOS Color 0.01Lux@F1.2, Black&White 0.001 Lux@F1.2 |
|||
|
Video Decode |
H.264 Video decoding ,support dual code,AVI format |
||||
|
Image Export |
Main Code: 1280*960; Branch Code: 704*567 |
||||
|
Internet connection |
RJ45*1,Ethernet*1 |
||||
|
Signal Port |
photoresistor*1 , IR-CUT driver*1 |
||||
|
Mobile Monitor |
ISO,Android |
||||
|
Power Consumption |
DC12V/2A,Comsuption: ≤3W |
||||
|
Size |
38mm*38mm |
||||
|
Touch Screen |
Touch Technology |
IR Touch |
|||
|
Resolution |
4096(E)*4096(D) |
||||
|
Touch Dots |
6 |
||||
|
Accuracy |
±2mm |
||||
|
Respense Time |
6ms~15ms |
||||
|
Transmitance |
Tempered glass90% |
||||
|
Temperature |
0℃~60℃ |
||||
|
Working Voltage |
DC5V |
||||
|
Power Comsuption |
1W~5W |
||||
|
Timer Switch |
Input Voltage (V) |
AC220V/50HZ |
|||
|
Switch Capacity |
Resistence 25A |
||||
|
Power Comsuption |
<5VA |
||||
|
Switch Time range |
1 Minute ~168 Hours |
||||
|
Afer-sale service |
Period |
One Year warranty lifetime maintenance |
|||
|
Ways |
Online Video support ,Training |
||||
|
Packing details |
Material |
Carton, Foam |
|||
|
Applications |
Outdoor use (Square ,Plaza ,Park ,Gas Station,Bus Station etc) |
||||
|
Installation |
Floor stand |
||||
|
Languages |
Multiple Language Pack |
||||
