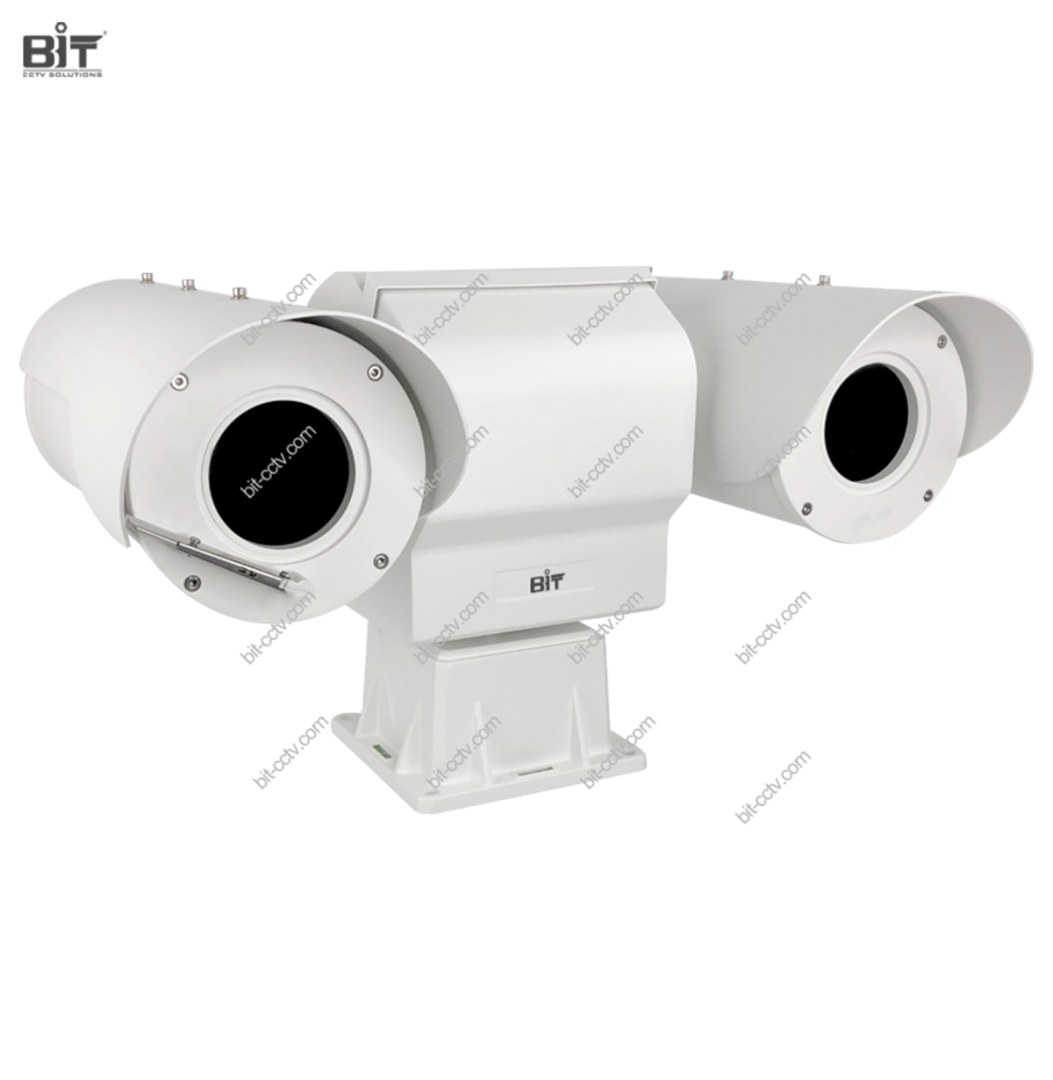

Outdoor High Precision Medium Duty Pan Tilt with Side Housings
Quantité : 1-1000 Prix : 20~50,000 US$
Features of BIT-PT330L Outdoor High Precision Medium Duty Pan Tilt Bracket with Side Housings
Outdoor use, two side load housings for customization
Pan angle: 0-360°, tilt angle: -75°~-+40°
Pan speed 0.1~60°/s, tilt speed 0.1~30°/s
Preset accuracy: ±0.1°
High precision stepper motor and worm gear drive transmission
Self-lock with memory after power failure, strong wind-resistance
Support coordinate feedback and absolute control
Support lens preset, adaptive speed to zoom rate
Support analogue camera or network camera
Rated IP66 for dust and water ingress
Note: BIT-PT330L does not include any cameras inside housings.
Overview of BIT-PT330L Outdoor High Precision Medium Duty Pan Tilt with Side Housings
BIT-PT330L is a variable speed, worm/gear drive medium duty pan tilt unit with large size housigns on two sides for outdoor application. With 360°endless pan rotation and tilt -75°~-+40°angle, BIT-PT330L provide a wide angle video surveillance with ±0.1 positioning accuracy. Many advanced features are available: preset, auto scan, self-lock, absolute control. It support either analogue camera or network IP camera application. Customization and OEM service is available.
Technical Specifications of BIT-PT330L Outdoor High Precision Medium Duty Pan Tilt with Side Housings
|
Model |
BIT-PT330L |
|
Load Type |
Indoor/outdoor, two side housings |
|
Rotation Angle |
Pan: continuous 360° |
|
Tilt: -75°~+40° |
|
|
Rotation Speed |
Pan: 0.1°/s-60°/s |
|
Tilt: 0.1°/s-30°/s |
|
|
Programmable Presets |
200 |
|
Preset Accuracy |
± 0.1° |
|
Cruising Track |
1 |
|
Auto Scan |
1 |
|
Coordinate Feedback |
Support angle query feedback/real-time feedback (optional) |
|
Absolute Control |
Support |
|
Lens Preset |
Support |
|
Lens Control Speed |
Continuously adjustable zoom, focus speed |
|
Adaptive PT Speed to Zoom |
Speed up while zooming out, slow down while zooming in |
|
Guard Location |
Support with 1 preset or 1 cruising track or 1 auto scan |
|
Power Failure Memory |
Support, recover to PT position, scan/preset/cruising track movement before power failure |
|
Self-lock |
Support |
|
Protocol |
Pelco P/D |
|
Baud Rate |
2400/4800/9600/19200 bps |
|
Communication Interface |
RS485 (Optional RS422) or RJ45 |
|
Transmission |
Worm gear transmission |
|
General |
|
|
Operating Voltage |
AC24V±20 %, 50/60Hz or DC24V±10 % |
|
Power Consumption |
≤90W (With heater) |
|
Working Temperature ( with heater) |
-40ºC~+70 ºC (-40 ºF ~ 158 ºF) |
|
Working Humidity |
90±5% RH |
|
Storage Temperature |
-40 ºC~+70 ºC (-40 ºF ~ 158 ºF ) |
|
Protection Level |
IP66 |
|
Material |
Aluminium Alloy |
|
Weight |
15kg (33.07lb) |
|
Dimension(L×W×H) |
440×340×320mm(17.32x13.38x12.6in) |
As one of hd cctv camera manufacturers, we have types of surveillance camera surveillance camera for sale, if you have needs, please contact us.
