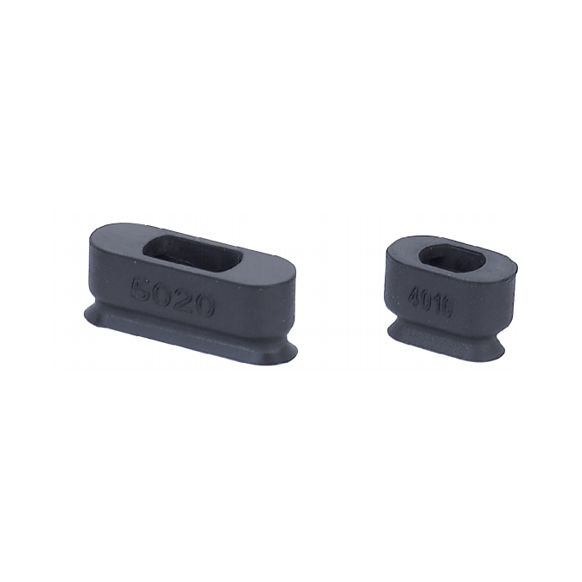

OVAL FLAT SUCTION CUP
SAO Series
Small sizes, large suction force, suitable for handling long and narrow workpieces
Discharge static electricity gently to protect workpieces from damage
Suitable for workpieces of various sizes and shapes
Oval Flat Suction Cup
Oval and Flat structure
Conductive material available
Various sizes available
SAO Series Vacuum Seal Suction Cups
SAO 8×20 N
|
① Series |
② Size |
③ Material & Hardness |
|
SAO |
3.5×7 6×20 |
N - NBR 55 |
|
4×10 8×20 |
WS - White silicone 50 |
|
|
5×10 4×30 |
CN - Conductive NBR 55 |
|
|
6×10 5×30 |
CS - Conductive silicone 55 |
|
|
4×20 6×30 |
|
|
|
5×20 8×30 |
|
Technical parameters
Note: Testing vacuum level -60kPa, a workpiece with a smooth and clean surface. The data of pull-out force as above are figured out without considering safety factors. The data may be different according to different workpiece surfaces. Recommend the length of the vacuum hose to be as short as possible, max 2m.
|
Model |
Pull-out force |
Inner |
Min. curve radius |
Weight |
Recommended |
MPQ |
|
N |
volume |
of workpiece |
g |
hose dia. |
pcs |
|
|
|
cm³ |
mm |
|
mm |
|
|
|
SAO3.5×7 |
0.9 |
<0.1</span> |
6 |
0.5 |
4 |
10 |
|
SAO4×10 |
1.6 |
<0.1</span> |
7 |
0.4 |
4 |
10 |
|
SAO5×10 |
2 |
<0.1</span> |
9 |
0.4 |
4 |
10 |
|
SAO6×10 |
2.4 |
<0.1</span> |
13 |
0.5 |
4 |
10 |
|
SAO4×20 |
3.2 |
<0.1</span> |
8 |
0.8 |
4 |
10 |
|
SAO5×20 |
4.2 |
<0.1</span> |
11 |
0.7 |
4 |
10 |
|
SAO6×20 |
5 |
<0.1</span> |
14 |
0.9 |
4 |
10 |
|
SAO8×20 |
6.5 |
<0.1</span> |
16 |
0.9 |
4 |
10 |
|
SAO4×30 |
5.2 |
<0.1</span> |
8 |
1.3 |
4 |
10 |
|
SAO5×30 |
6.5 |
<0.1</span> |
10 |
1.1 |
4 |
10 |
|
SAO6×30 |
7.8 |
<0.1</span> |
14 |
1.2 |
4 |
10 |
|
SAO8×30 |
10.2 |
0.1 |
18 |
1.3 |
4 |
10 |
Founded in 2006, AIRBEST is a manufacturing and service enterprise engaged in the R&D, production, and sales of vacuum components like vacuum generators, vacuum suction cups, and vacuum grippers, etc.. It provides various vacuum gripping solutions according to customers' needs. Its products are involved in multiple industries including Intelligent manufacturing, Automobile sheet metal stamping, Packaging, Electronics, Lithium battery, Photovoltaic, Woodworking, Stone, Robots, Food, and Pharmaceutical industries, etc.
As one of vacuum suction cup manufacturers, we will do our best to meet all the needs of customers.
