P4 Outdoor Mobile LED Advertising Trailers
Détails
Chine (Rép. pop) Véhicule
Véhicule

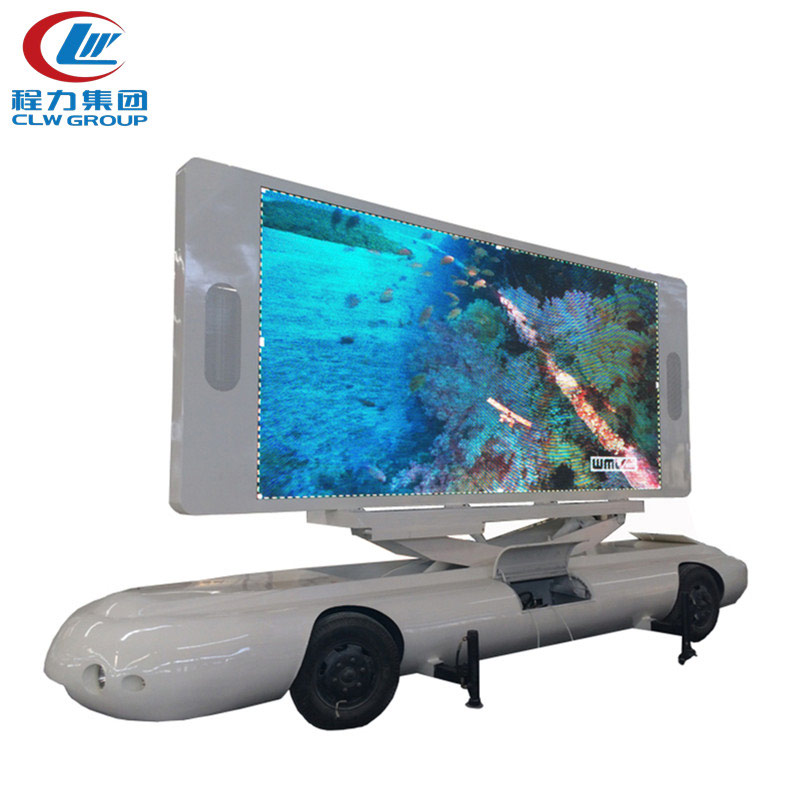

P4 Outdoor Mobile LED Advertising Trailers

Quantité : 30000 Unit   Prix : 5000-50000USD

Are you looking for mobile advertising trailers for sale?

DIP LED encapsulation confirm the high brightness even under strong sunlight Good protection level waterproof IP65, anti-corrosion, oxidation resistance, long life span Long viewing distance, High definition, Good uniformity Brightness can be adjusted automatically according to different surroundings. The mobile led advertising trailer Can be set to open and close the screen automatically. The mobile advertising trailers can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.P6 P8 P10 type screen is optional. We can provide Dongfeng, Foton, FAW, JAC, JMC, SINOTRUK HOWO, or any other Chinese truck chassis brand. Quality mobile advertising trailers for sale.

The advantage of P6 Outdoor Mobile LED Advertising Trailer

1. High resolution and good best view distance;

2. Self contained whisper-quiet generator.

3. Standard waterproof cabinet which is IP65 and UV resistance;

4. Multi signal input.With Video Processor,signal can be PAL/NTSC,VGA ,Video ,DVD,TV etc.

5. Hydraulic system to support truck & trailer led display up and down;

6. LED Display brightness adjust automatically;

The specification of P6 Outdoor Mobile LED Advertising Trailer

CLW P6 LED TRAILER

Item No.

Parameters

Dot Pixel

P6

Display Size

2 sets, 3840mm*1728mm

Module Size

192mm*192mm

Pixel Configuration

1R1G1B

Module Resolution

32*32(dots)

Density

27777dot / m2

LED Type

SMD2727

Brightness

≥5500CD/m2

Cabinet

Cabinet Size（W*H）

960mm*960mm

Cabinet resolution

160*160(dot)

Viewing angle

H: 140°/ V: 140°

Protective Grade

IP65

Average Power consumption

550 Watt/cabinet

Max Power consumption

900 Watt/cabinet

Best View distance

6-80m


Weight(kg/pc)

≤ 55 kg/cabinet (Including
power supply/cabinet/LED
module etc)

Material

Iron



Components

1. Power Modules

2. Fans

3. External Power cables & connectors

4. Mounting/locking plates between cabinets

5. Inter-connecting cables & ribbons (both power and signal)

TRAILER PART

External Dimension

7800mm × 1800mm × 2940mm

Min turning radius

>=16m

Total weight

5300kg

Tire size

16 inch

Color

Customized

Wind resistant system

Using hydraulic support led
support, when the screen
rises, the highest wind
resistent index can reach 8 grade.

Hydraulic lifting

Max 1.5m

Rotation

360° all around

Electrical System

input voltage

380V

output voltage

220V

electricity

50A

average power consumption

0.5wh / ㎡


Import generators

16kw

Multimedia System

power amplifier

200W

speakers

200W

video processor

can support USB/DVD/HDMI/DVI/VGA

surface paint

Customized

brake

hydraulic brake

metal plate structure

cold rolled board

Control system and LED

Adopted Control System

PCTV Board + DVI Board + Control Board + Network cable Transmission

Video Signal

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION etc

LED parameter

R: (620-623nm) G: (519-522nm) B: (466-467 nm)
R: IV(800-1200mcd) G: IV(1800-2300mcd) B: IV(450-520mcd)

Brightness Level

Manual adjustment: 256 levels for R, G, B
Automatic adjustment: 8 grades for each color
Localisation : Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China, 430000 HuBei,
Personne à contacter : Yuki Wang, +18 8 58 01 19 48

Bonne affaire : acheter au vendeur
