PA 120 Combination of Power connector
Quantité : 1 Prix : $2.6
PA 120A 600V High Quality Power Connector
Home>> All Series>>Connector>>Single Pole Power Connectors>>PA75

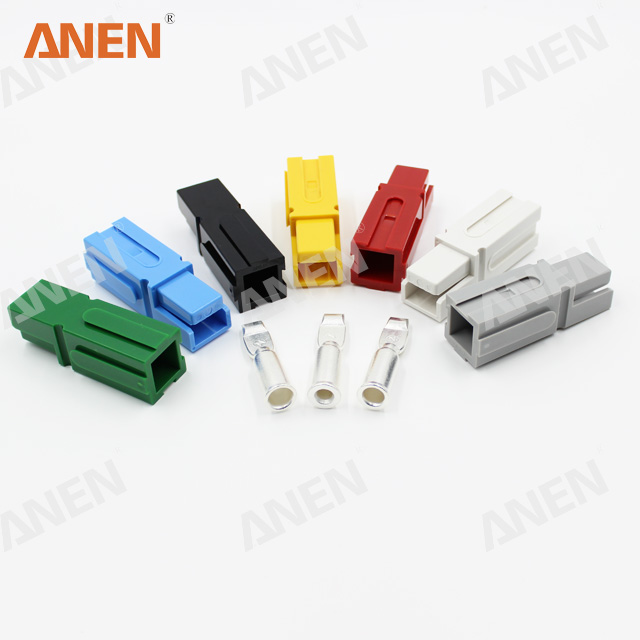

| ANEN PA Series
Anen PA Series Power Connector provides cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
The housings are modular and genderless. Anen PA connector' provide 600 Volts continuous, AC or DC operation. Wire sizes range from 2 AWG to6 AWG.
Contacts are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products.
Anen PA Series finger proof is designed specifically for high voltage applications where personal safety is critical. the connector meets the accessibility requirements of UL and is recommended for applications range from 15 to 350 volts.
Connector PA120 Descriptions
· Fingger Proof
· Flat Wiping Contact System
· Molded-in Dovetails
· Interchangeable Genderless Design
Item | Value |
Rated Current | 120A |
Rated Voltage | 600V |
Wire Size (AWG) | 2 - 6AWG |
Contact Materal | Copper, Plated With Silver |
Insulation Material | PC |
Flammability | UL94 V-0 |
Without Load, Contact/Disconnect Cycles | To 10,000 |
With Load (Hot Plug 250 Cycles & 120V) | 60A |
Average Contact Resistance (Mico - Ohms) | <140</td> |
Insulation Resistance | 5000 |
Average Connection/ Disconnect (N) | 50 |
Connector Holding Force (lbf) | 450N Min |
Environment Temperatures | -20···+75 Degree |
Connector Applications
This series of products meet strict UL, CUL, CCC, RoHs certification which can be used in logistics communication,Power-driven tools,UPS systems Elestric vehicles.medical equipment AC/DC power etc. of widely indystry and the most area around world.
Personne à contacter : Helen Mo, +15 9 89 24 16 89
