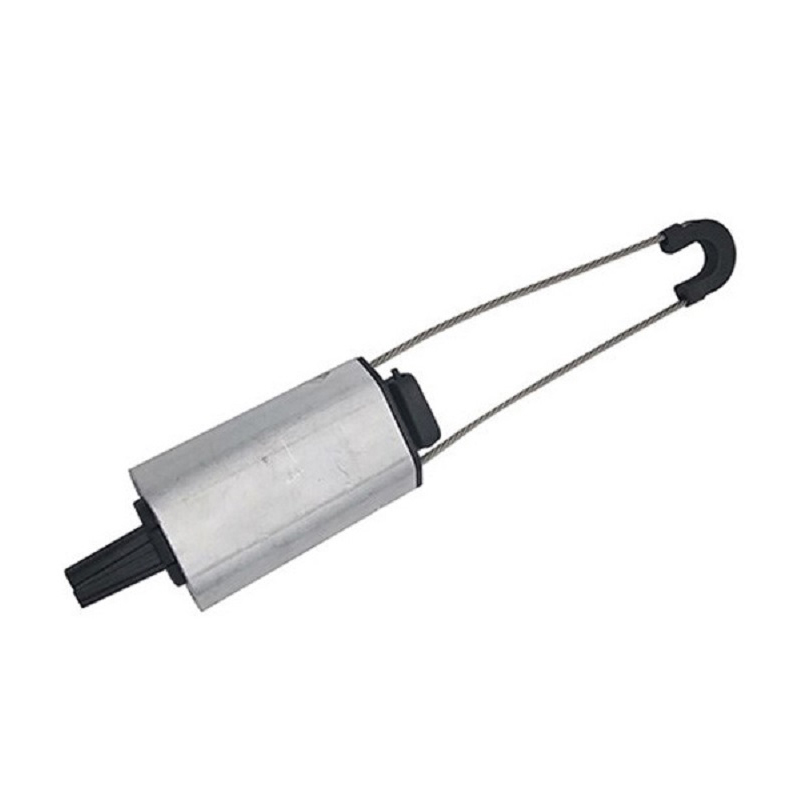

PA-1500 Tension Cable Clamp
For tension of LV ABC cables in an insulated messenger wire system (IMWS). Suitable for every climatic conditions.
This tension wire clamp is easy to install without tools and suitable for various climatic conditions.
TUOLIMA can customize the optical cable clamp according to your requirements.
Details of PA-1500 Tension Cable Clamp
Fiber Diameter range: 11-14mm;
The bodies of fiber optic clamps are made of aluminum alloy
The cleats are made of UV resistant synthetic material. They are captive.
The stainless steel flexible linking cable is captive.It is equipped with a resistant, insulated and movable saddle.
Fixing the insulated neutral messenger is ensured by cleats without damaging the insulation.
Specification of PA-1500 Tension Cable Clamp
|
MODEL |
Cable Diameter |
Material |
MBL |
Weight |
|
PA-1500 |
11-14mm |
Plastic and stainless steel |
15kN |
354g |
Packing and Comments of PA-1500 Tension Cable Clamp
|
Package contents |
PA-1500 customized package 25pcs/CTN |
|
Package dimensions(W*H*D) |
52*35*10cm |
|
Package material |
Standard carton for sea shipping or air express |
|
Weight |
11.55kgs |
TUOLIMA, as an excellent fiber optic products supplier, offers a wide range of fiber optic cable clamps for you to choose from.
