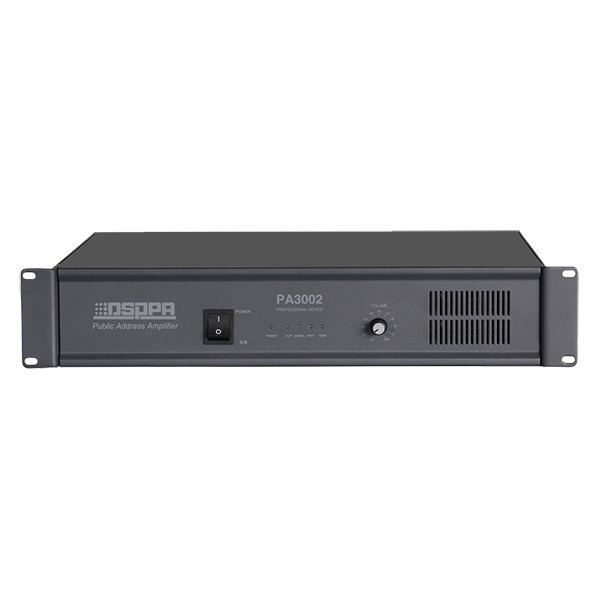

PA3002/PA4002/PA5002/PA6002/PA7002/PA8002 PA Series Power Amplifier
Features
● 70V/100V & 4-16Ω optional speaker output (PA8002: 200V)
● Rated power: 350W/450W/650W/1000W/1500W/2000W
● XLR and 6.3mm jack AUX output for convenient linkage
● 5 LED indicator for clear status display
● Built-in automatic temperature controlled fan cooling system
● Industrial design for audio project, long term & stable use
● Reliable protection from overheat, overload, clip & short circuit
Specification
Model |
PA5002 |
||
Max. Rated Power |
350W |
450W |
650W |
Input sensitivity |
1V |
||
S/N Ratio |
>80dB |
||
Damping Factor |
200: 1 |
||
Input CMRR |
greater than 90dB. |
||
Frequency Response |
50Hz-15kHz (±3dB) |
||
THD into 4W/1kHz |
<0.3% |
||
Slew Rate |
>15V/microsecond |
||
Indicators |
“power”, “clip”, “signal”, “prot”, and “temp” LEDs. |
||
Protection |
Power turn on-turn off, High temperature,DCvoltage & Output Circuit Shorting. |
||
Power Requirement |
AC220-240V/50-60Hz |
||
Power Consumption |
700W |
850W |
1000W |
Dimensions |
483´380´88mm |
||
Gross Weight |
12kg |
13kg |
15kg |
Net Weight |
11kg |
12kg |
14kg |
Now the price of china amplifier is affordable, if you have needs, please contact us.
