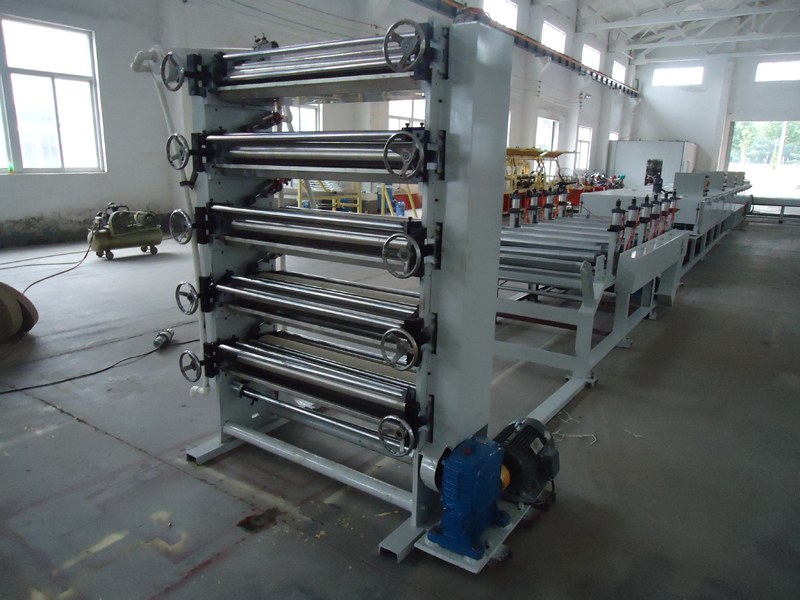

Paper Slip Sheet Machine
The slip sheet paper machine is used to make paper slip sheet. This is the latest developed paper sheet production line. SANPPL-1600F line is to produce slip sheets/flat paper boards with thickness of max.5mm and width of max.1600mm. It adopts electric control system to guarantee stable speed of 30m/min. It has drying system to dry the cardboard.
Specification of Paper Slip Sheet Machine
|
Model |
SANPPL-1600F |
|
Max. board width size |
1600mm |
|
Min. board width |
500mm |
|
Thickness |
≦5mm |
|
Max. quantity of layer |
6 |
|
Max. speed |
30m/min |
|
Paper stands |
Hydraulic paper stands without spindle |
|
Applicable glue |
PVA glue |
|
Drying system |
yes |
|
Winding system |
Automatic winding system |
|
Control system |
PLC, servo motor, touch screen, inverter |
|
Quantity of cutter |
1 set |
|
Min. cutting length |
350mm |
|
Cutting tolerance |
±1.5mm |
|
Cutting system |
Automatic hydraulic cutting system |
|
Longitudinal cutting |
4 knives, can modify the edges |
|
Main motor power supply |
380V, 50HZ, 3 phase |
|
Total weight |
about 6.5MT |
|
Dimension(m) |
33×3×1.8m (including dryer) |
|
Operator |
2-3 persons |
Following the working style of being attentive, rigorous, professional, persistent, and simple, carrying on the enterprising spirit of being a gentleman, promoting righteousness, following the right way, doing the right thing, and making honest money, "San Machinery" people are optimizing service quality and improving technological level constantly.
Now the price of paper edge protector machine is affordable, if you have needs, please contact us.
