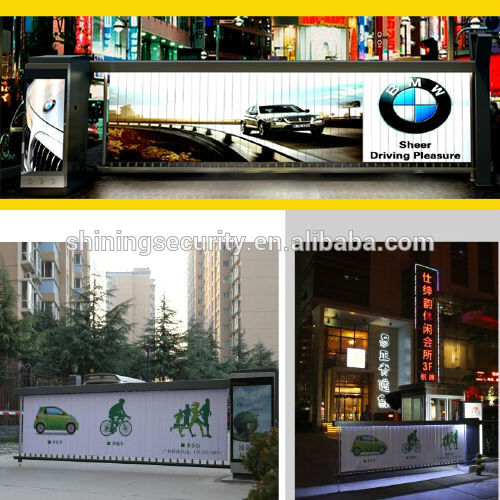

Parking barrier with advertising design

Features:

1. Intelligent: Auto-detects opening and closing position in high accuracy by both mechanical and electrical limit detector. Combination of special inner working design and smart motor ensures swift and smooth arm movement in falling and lifting to reduce bouching.

2. Durable: Extension spring is more durable than compressed spring in heavy-duty site where barrier gate will open and close continously. AC motor can support long-lasting working of barrier gates. Cooling Fan processor is for decreasing working temperature.

3. Secure: Arm will be self-locked in any position to avoid unauthorized person to manually operate arm.

4. Safe: Arm will reversed back when it meets any obstacle in its movement. Optional rubber arm can avoid any damage when arm touches anything.

5. User friendly: Interfaces for photocell, loop detector, arm light, ect are reserved. No need to change spring if arm is changed (Eg. Arm is changed from 3m to 6m, the same spring can support.)

Specification:

1. Power Supply: 220V+10%/50HZ 110V+10%/60HZ

2. Motor Power: 140W

3. Temperature: -30 degree to 80 degrees

4. Related Humidity: <=95%</span>

5. Barrier Body Dimension: 450*360*1180mm

5. Boom Length: 3.7m (5s) or 4.2m (8s)

6. Advertising Boom Board Dimension: 92*830mm

7. Barrier Body Advertisement Plate Dimension: 450*880mm

8. LED Light: 15A, 200w

9. Total Height for Boom Lift: Decided by boom length

10. Boom Lifting Time: 5s and 8s

11. Top Tube Middle line Height: 1050mm

12. Remote Control Distance: <=30m</span>

13. Input Interface: +12V Level Signal or more than 100ms impulse

Driving current less than 10mA

14. Communication Interface: RS485
