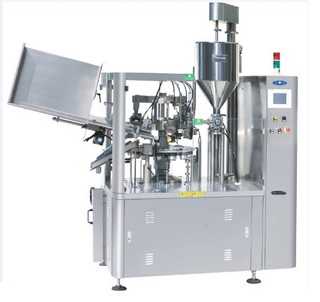

Paste Filling and Sealing Machine

Application:

Automatic Tube Filling and Sealing Machine is widely used in toothpaste, pharmaceuticals and other industries, applicable to all types of aluminum, aluminum pipe, aluminum-plastic pipe, hose pipe. It can be filled all kinds of cream, latex, oil, etc.

Equipment adopts twelve work stations, automatic bring tube, check color code, filling, folding and sealing, pressure tooth pattern, sending tube. Optional tube box, sealed hopper, heated hopper, automatic feeding, shields and other devices. Equipment is full compliance with GMP requirements.

Feature:

Different forms can be completed, such as folding aluminum tubes and other metal pipe two fold, three-fold, saddle-type folding, etc.

With no tube no filling function

With fault alarm, automatic stopping device if mechanical overload

Automatic control of production

Main technical parameter:

Applicable specifications 5-400ml

Production capacity 30-40 pcs / min

Seal pipe diameter Ф12.7-Ф25mm

Power 220V / 50Hz

Power 1 KW

Filling accuracy ≤ ± 1.5%

Gas supply 18 m3 / h 0.6-0.8MPa

Machine weight 500 kg

Dimensions 1200 x 700 x 1600mm
