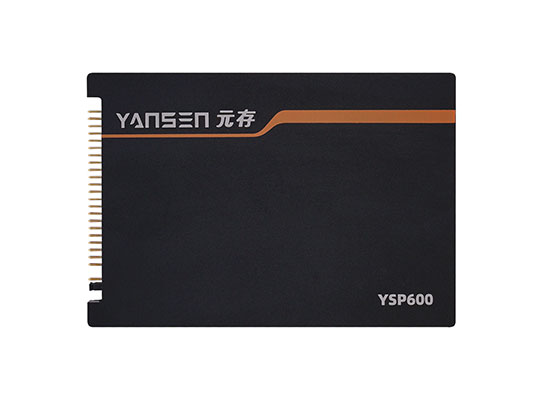

PATA YSP600E-X-XXX
The YSP600E-X-XXX SSD is the 2.5" PATA drive based on an advanced industrial flash memory technology, it has a tough outer metal case, high reliability and anti-shock features that make it ideal to replace traditional 2.5" PATA HDD. In response to customer needs, Yansen launched PLP function option to prevent end user loose important data.
Characteristics Of YANSEN PATA YSP600E-X-XXX
|
Product Model |
YSP600E-X-XXX |
|
Flash Type |
SLC/MLC |
|
Capacity |
8GB~128GB |
|
Sequential Read（MAX） |
Up to 125MB/s |
|
Sequential Write（MAX） |
Up to 100MB/s |
|
4K Random Read |
2500 IOPS |
|
4K Random Write |
500 IOPS |
|
Operating Temperature |
-20°C ~ 70°C, -40°C ~ 85°C |
|
Storage Temperature |
-55°C ~ +95°C |
|
Humidity |
5%-95% RH non-condensing |
|
Shock |
1500G/0.5ms |
|
Vibration |
80Hz~2000Hz/20G |
|
Operating Voltage |
DC 5V±5% |
|
Power Consumption（MAX） |
1.6W |
|
Dimensions |
L100mm*W69.8mm*H9.6mm ±0.15mm |
|
MTBF |
2 million hours |
Advantages Of YANSEN PATA YSP600E-X-XXX
Interface: PATA 44PIN, ATA-7（133MBps）
Low-Density Parity-Check (LDPC) Code）
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Power Loose Protection PLP
As a professional ssd supplier, we provide ssd half msata, pata solid state drive, pata hard drive, pata to msata, solid state drive storage devices, etc. For more info, please feel free to contact us!
